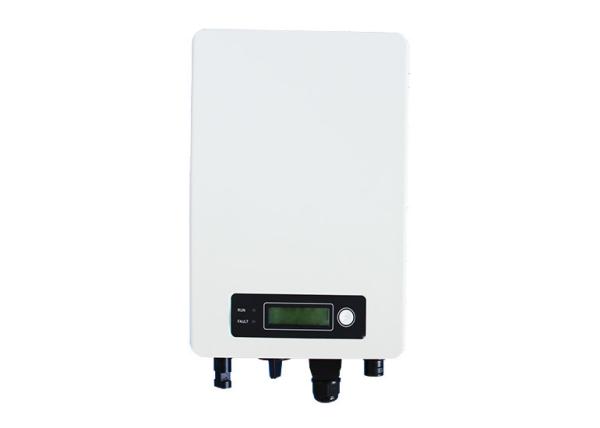

1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display
Specifications
Brand Name :
URILIC
Model Number :
U-SPI-1KW-1.5KW-TL2-M
Certification :
CE,UL,ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sets/ month
Delivery Time :
7 working days after received payment
Packaging Details :
Plywood
Product Name :
Single Phase Inverter
Rated Power :
1KW, 1.5KW
Display :
LCD
AC Outpu :
220V/230V/240VAC
Dimensions :
210*290*90 mm
Weight :
5kg
Guarantee :
5 - 25 years optional
IP Rating :
IP65
Description

1KW and 1.5W Single Phase Inverter Single Phase Grid Inverter Solar Inverter

Description:

U-SPI inverter has following characteristics which make U-SPI inverter “High Efficiency, High Reliability, High Cost Effective Ratio” . Wide DC input voltage and current ranges, enables more PV panels connected. Wide MPP voltage range ensure high yield under various weather conditions. High MPP tracking accuracy, ensure the minimum power loses during converting. Complete set of protection methods. Also, following protection methods are integrated in U-SPI inverter: Internal overvoltage, DC insulation monitoring, Ground fault protection, Grid monitoring, Ground fault current monitoring, DC current monitoring, Integrated DC switch.

Features:

  • 5-25 years warranty as optional
  • Built-in GPRS module as optional
  • Built-in WiFi module as optional
  • Multi-button touch interface
  • Power supply from AC side
  • Anti-shadow function
  • Circuit design based on temperature gradient
  • Smaller and lighter,only 5 kg
  • Meet VDE AR-N-4105 certification
  • Die casting technology
  • High performance DSP for algorithm control
  • New topology design


Product Details:

Input(DC)　　
Max. PV Module Power [W] 1250 1750
Max. Input Power [W] 1200 1700
Max. DC Voltage [V] 500 500
Nominal DC Voltage [V] 360 360
Operating MPPT Voltage Range [V] 60 - 400 60 - 400
MPPT Voltage Range at Nominal Power [V] 155 - 400 155 - 400
Start up DC Voltage [V] 70 70
Turn off DC Voltage [V] 50 50
Max. DC Current[A] 10 10
Max. Short Circuit Current [A] 12 12
Number of MPP trackers 1 1
Number of DC Connection 1 1
DC Connection Type Amphenol Connector Amphenol Connector
Output(AC)　　
Max. AC Appaeent Power [VA] 1000 1500
Nominal AC Power [W] 1000 1500
Nominal Grid Voltage [V] 220 / 230 / 240 220 / 230 / 240
Nominal Grid Frequency [Hz] 50 / 60 50 / 60
Max. AC Current [A] 5 7.5
Grid Voltage Range [V]* 185 - 276 185 - 276
Grid Frequency Range [Hz]* 45 - 55 / 55 - 65 45 - 55 / 55 - 65
Power Factor 0.9i - 0.9c 0.9i - 0.9c
Total Harmonic Distortion (THD) ＜3% ＜3%
Night time Power Consumption [W] ＜1 ＜1
AC Connection Type Plug-in connector Plug-in connector
Efficiency　　
Max. Efficiency 96.5% 96.5%
Euro Efficiency 95.8% 96.0%
MPPT Efficiency 99.9% 99.9%
Safety and Protection
Protection Functions Array ground insulation resistance monitoring / Output over current protection / Residual current monitoring / Array polarity reverse protection / Output over/under voltage protection / Surge protection / Array over voltage protection / Output over/under frequency protection / Anti-island protection / Array over current protection / Output short circuit protection / Over temperature protection
Protection Class Ⅰ(According to IEC 62103)
Overvoltage Category PV Ⅱ / Mains Ⅲ(According to IEC 62109-1)
Reference Standard
Safety Standard IEC/EN 62109-1,IEC/EN 62109-2
EMC Standard EN 61000-6-1,EN61000-6-3,EN 61000-6-2,EN61000-6-4,EN61000-3-2,EN 61000-3-3
Grid Standard VDE-AR-N 4105, VDE 0126-1-1, C10/11,G83/2, UTE C 15-721-1, CEI 0-21, EN50438, NB/T32004, IEC62116, IEC61727, IEC61683, IEC60068
Physical Structure
Dimensions (WxHxD) [mm] 210 * 290 * 90
Weight [kg] 5
Environmental Protection Rating IP 65(According to IEC 60529)
Cooling Concept Natural convection
Mounting Information Wall bracket
General Data
Operating Temperature Range [℃] -25 to +60(derating above 45℃)
Relative Humidity 0% to 100%,no condensation
Max. Altitude (above sea level) [m] 2000
Noise Level [dB] ＜40
Isolation Type Transformerless
Display 2 LED,Backlight,2 * 16 Character LCD
Data Communication Interfaces RS485 / WiFi / GPRS optional
Guarantee 5 - 25 years optional

*The AC voltage and frequency range may vary depending on specific country grid

Advantages:

  • Guaranteed product quality
  • Plug and play
  • Free monitoring fee for data transmission
  • Lower internal temperature
  • User friendly operation
  • Query the state of inverter at night
  • Suitable to complex installation enviroment
  • Easy transortation and installation
  • Adjustable active and reactive power
  • larger heat dissipation area
  • Faster CPU speed
  • Max. efficiency 96.5%, Euro efficiency 96.0%

Benefits:

  • Guaranteed customer benefits
  • Remote monitoring without setting
  • Remote monitoring without any charge
  • Easy to operate
  • Real-time data readable for 24 hours
  • Increase the electricity generation of the system in shading environment
  • Longer life cycle
  • Saving storage and installation space
  • Meet the lastest regulations
  • More reliable
  • Higher inverter control accuracy
  • Increase system payback ability

Mounting Instructions:

1KW 1.5W Single Phase Grid Inverter , Solar Power System Inverter LCD Display

  • U-SPI inverter is designed for indoors and outdoors installation
  • Please mount the inverter in the direction as illustrated above
  • Install the inverter in the vertical direction is recommended, with a max.15 degrees backwards.
  • For the convenience of checking the LCD display and possible maintenance activities, please install the inverter at eye level.
  • Make sure the wall you selected is strong enough to handle the screws and bear the weight of the inverter
  • Ensure the device is properly fixed to the wall
  • It is not recommended that the inverter is exposed to the strong sunshine, because the excess heating might lead to power reduction
  • The ambient temperature of installation site should be between -25 °C and +60 °C
  • Make sure the ventilation of the installation spot, not sufficient ventilation may reduce the performance of the electronic components inside the inverter and shorten the life of the inverter
