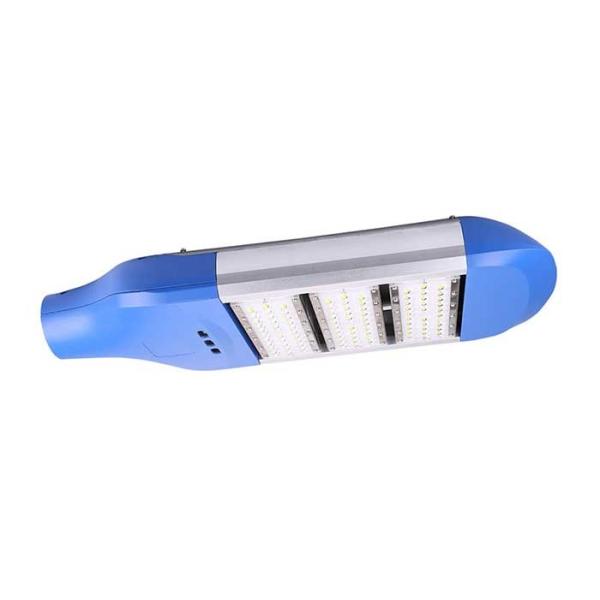

U-SL1302-120W LED Street Light IP66 Led Street Light 120 Watt Led Street Light
Description:
LED street light is made of heavy-duty die-cast aluminum with integrated radiator and tempered glass lens. It is made of high-quality materials. The LED street lamp is manufactured in strict accordance with high standards to ensure safe and reliable use. Designed by a professional industrial design team, it can be applied to wind and solar hybrid street lighting systems with high-end, stylish and atmospheric appearance. Automatically judge the weather and reasonably plan the discharge power.
The upgrade of urban lighting. Related plans and measures were issued in many places. The products are manufactured with high-quality materials and advanced technology. Upgrade road lighting to create distinctive night scene lighting. The aim is to improve the level of city management and build a smart city.
Quick Detail:
Distribution Curve:
Product Details:
Model | U-SL1302-120W |
Power | 120W |
Lumen efficacy | 143 Lm/W |
Lumen flux | 17160 lm |
CCT | 5000-6000K |
CRI | ≥70 |
Brand of chips | Bridgelux / San‘an |
LED Qty. | 56 pcs |
Beam angle | 150*45°/150*65°/150*70° |
IP level | IP66 |
Input voltage | 90-305V |
Working temperature | -40°C~50°C, 20%~90% H.R. |
Storage temperature | -40°C~85°C, 10%~90% H.R. |
Power efficiency | 90% |
PF | >0.95 |
Life span | >50000H |
Pole diameter | Φ60mm |
Housing material | AL6063-T5 |
Light size | 520*336*91 mm (±5mm) |
Packing size | 575*395*150 mm (±5mm) |
Light N. W. | 5.08 kg (±0.1kg) |

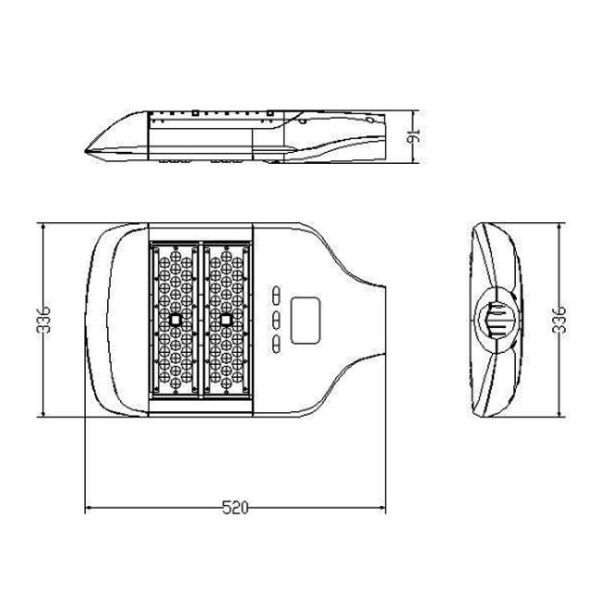

Mechanical Drawing:

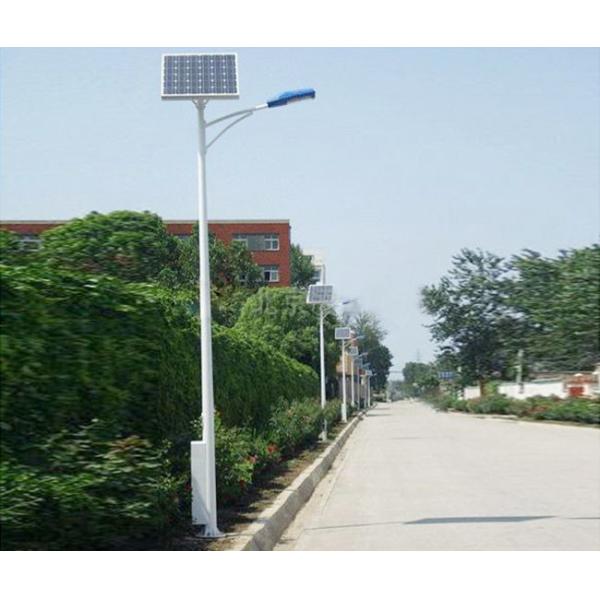

Installation Diagram:
Applications:
LED Street Light is widely used in urban expressways, highways, trunk roads, secondary roads, access roads, streets, factories, schools, gardens, parks, community, garden plaza and other street lighting.
