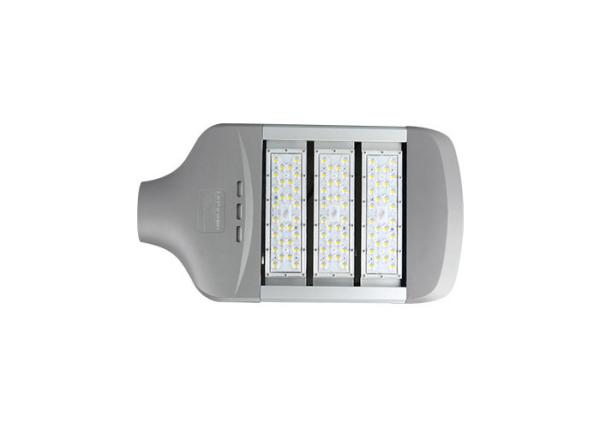

6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design
Specifications
Brand Name :
URILIC
Model Number :
U-SL1303-150W
Certification :
ETL, DLC, ENEC, TUV, CE
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Product Name :
LED Street Light
Power :
150W
LEDs Qty. :
84 pcs
Input Voltage :
90-305 V
Size :
612x336x91 mm
Packing Size :
665x395x150 mm
Gross Weight :
6.15 kg
Pole Diameter :
Φ60 mm
Description

150W LED Street Light 6000K Led Street Light of Led Street Light Fixtures

Description:

LED street light is made of heavy-duty die-cast aluminum with integrated radiator and tempered glass lens. It is made of high-quality materials. The LED street lamp is manufactured in strict accordance with high standards to ensure safe and reliable use.​ Designed by a professional industrial design team, it can be applied to wind and solar hybrid street lighting systems with high-end, stylish and atmospheric appearance. Automatically judge the weather and reasonably plan the discharge power.

URILIC Energy is a supplier of LED street lights, LED light for street and road is one of the main products,if you need High Quality LED street light,Welcome to contact us led street light suppliers.

Quick Detail:

  1. With air duct heat dissipation design, the overall weight of the product is reduced and the heat dissipation performance is good, reducing light decay and prolonging the life of the light source. The mainstream CHEM modular design reduces maintenance costs for later use.
  2. Using high-efficiency ZAG lens technology, compared with similar products, the light efficiency is increased by 8% and the light transmittance is as high as 98%.
  3. Low energy consumption, constant current drive, energy saving 60%; overcurrent, overvoltage, lightning, high temperature protection to fully guarantee the product's life and stability.
  4. Rugged and long-lasting, up to 50,000 hours; no need to change fixtures frequently, no routine maintenance required.
  5. Green and environmentally friendly, the light source is free of ultraviolet rays, infrared radiation, and no mercury pollution.
  6. Beautiful appearance without dust, protection class IP66.
  7. Fast response, no stroboscopic; wide operating voltage range.
  8. The lamp bead is housed in two 1W dual crystal packages and the dead light rate is reduced by an order of magnitude.

Mechanical Drawing:

6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design

Product Details:

Model U-SL1303-150W
Power 150W
Lumen efficacy 155.6 Lm/W
Lumen flux 23340 lm
CCT 6000K
CRI ≥70
Brand of Chips Bridgelux / San'an
LED Qty. 90pcs
Beam angle 150*45°/150*65°/150*70°
IP Rate IP66
Working voltage AC 90-305V 50/60Hz
Working Environment -40°C~50°C, 20%~90% H.R
Storage Temperature -40°C~85°C, 10%~90% H.R.
Driver Efficacy 88%
PF >0.95
Lifetime >50000H
Size of light pole Φ60mm
Body material AL6063-T5
Size of Lamp 612*336*91 mm (±5mm)
Carton 665*395*150 mm (±5mm)
N.W. 6.15kg (±0.1kg)

Distribution Curve:

6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design

Installation Diagram:

6000K High Power LED Street Light 150W With Air Duct Heat Dissipation Design

  1. Open the back board and back cover;
  2. Connect the light wires and grid wires;
  3. Insert the lamp pole into the light, lamp pole dia φ60mm;
  4. Make sure the light is steady, lock the push board M10 Hexagon socket head cap screws, fix the light tightly onto the pole arm;
  5. Close the back board, then back cover. Done;
  6. Connect light power supply wire and grid wire according to above picture, blue to N, brown to L, yellow&green to E.

Applications:

LED Street Light is widely used in urban expressways, highways, trunk roads, secondary roads, access roads, streets, factories, schools, gardens, parks, community, garden plaza and other street lighting.
