Specifications
Brand Name :
URILIC
Model Number :
Wind and Solar Energy
Certification :
ISO9001,CE,UL,IEC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500 sets/ month
Delivery Time :
5-30 work days
Packaging Details :
Multiple packaging
Product Item :
Wind And Solar Hybrid Street Light System
Wind Turbines :
600W
LED Lamps :
60W
Solar Panel :
160W (2pcs)
Controller :
Wind and Solar Hybrid Controller
Battery :
Lead Acid 120Ah
Power Type :
Wind and Solar Energy
Applications :
Highway lighting, City
Description

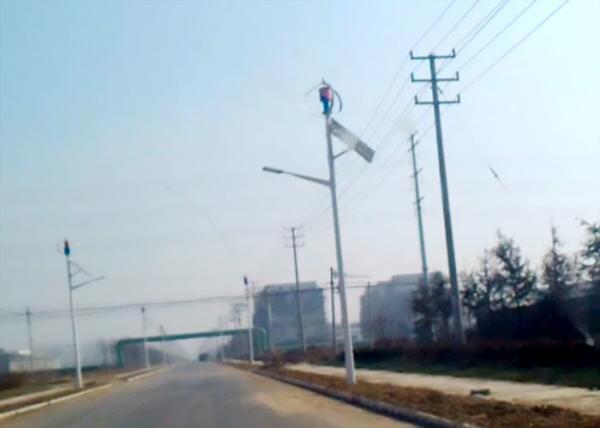

Wind and Solar Energy Wind And Solar Hybrid Street Light System Installed Siyang County

Description:

Siyang County is located in the Subei Plain, one of China's “Top Ten Xintianfu”. It belongs to the Yangtze River Delta, and is the Huaihai Economic Circle, the Yangtze River Delta Economic Circle, and the cross-radiation area along the canal town axis.

The climate in Siyang County is mild, and it belongs to the transitional climate of the north subtropical monsoon. The sunshine is abundant, the rainfall is abundant, the frost-free period is long, and the four seasons are distinct. The annual average temperature is about 14.2 °C, the average annual sunshine is about 2215.9 hours, and the average annual precipitation is 906.2 mm.

Rich in climate resources, suitable for installation of wind and solar hybrid street light system.

Wind And Solar Hybrid Street Light System Features:

  1. Although the wind and solar hybrid street light system has relatively high input cost in the early stage, it does not need to connect to the mains, and it is not necessary to dig the cable for the slot, omitting the expenses of frequently replacing the lamps and paying huge electricity bills.
  2. The wind and solar hybrid street light system is maintenance-free and maintenance-free. The ten-year use price is 38% lower than that of ordinary street lamps. The longer the use time, the lower the price.
  3. The wind and solar hybrid street light system provides a stable power supply, beautiful shape, and adds luster to the urban roads. It is undoubtedly a beautiful landscape.
  4. The wide application of wind and solar hybrid street light system can effectively improve people's awareness of energy conservation and use our life to be more energy efficient and of high quality.
  5. The transformer is not installed, the mains is not connected, and the wind and solar hybrid system is used for power supply.
  6. Energy saving rate of 100%, zero carbon emissions.
  7. Special weather, such as rainy weather, can be normally illuminated for 4 days.

Maglev Vertical Axis Wind Turbine:

Rated power 600W
Number of blades 3
Leaf material Aluminum alloy
Wind Generator Weight 32kg
Height/Diameter (mm) 1100/Φ1250
Ambient Temperature -40~50°C
Voltage 24V
Start wind speed 1.3 m/s
cut into the wind 3 m/s
Rated wind speed 13 m/s
Cut out wind speed 15 m/s
Can withstand extreme wind speed 65 m/s

Solar Panels Features:

  • High efficiency monocrystalline solar power panel.
  • Outstanding low-light performance.
  • High transmission tempered glass ensure high quaility solar panel.
  • Solar cells solar panel with durable anodized aluminum frame.
  • Efficient protection from frame deformation and water accumulation.
  • Rugged design to withstand high wind pressure and snow load, easy installation.

160W Solar Panels:

Model U160M-12
Peak Power (W) 160±3%
Open circuit voltage (V) 22.6
Peak Voltage (V) 18.5
peak current (A) 8.64
Short-circuit current (A) 9.34
Cell efficiency 19.0%
Maximum overcurrent (A) 15A
Maximum system voltage (V) 1000V DC
Rated operating temperature 48±2°C
Working temperature range -40°C- +85°C
Current temperature coefficient 0.1%/°C
Voltage temperature coefficient -0.37%/°C
Power Temperature Coefficient 0.45%/°C
Solar Cell 156*156*0.19mm
Number of cells 36 pcs
Size 1482*666*35mm
Weight 12.5 kgs
Surface Packaging Low iron tempered glass/3.2mm
Sealant Ethylene Vinyl Acetate (EVA)
Border Anodized Aluminum/Silver
Junction Box Waterproof Level ≥IP65
Pre-wind pressure 2400Pa
Back wind pressure 2400Pa
Maximum hail impact 25mm/ 23m/s
