Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
Specifications
Brand Name :
URILIC
Model Number :
30KW, 33KW, 40KW, 50KW
Certification :
CE,UL,ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sets/ month
Delivery Time :
7 working days after received payment
Packaging Details :
Plywood
Product Name :
Solar Wind Inverter
Rated Power :
30KW, 33KW, 40KW, 50KW
AC Grid Frequency :
50/60Hz, ±5Hz
Size (W/H/D) :
440*660*270 mm
Weight :
46 kg
Warranty :
5 years / 10 years
Application :
PV grid-connected inverter System
Display :
Graphic LCD
Description

30KW to 50KW Three Phase Grid Tied Inverter Solar Wind Inverter Commercial Roofs

Description:

30-50KW Three Phase, Dual MPPTs.

30KW to 50KW TL3-SE is ideal for commercial roofs and small distribution projects. Integrated wire box for comprehensive protections.

Leading edge technology. Double MPPT Tracker, MPPT tracking accuracy more than 99.5%. Max. Efficiency 97.9%, European Efficiency 97.4%. Integrated DC switch for added safety protection. Transformerless design and high power density, offer lighter and more convenient installation. Power factor continuously adjustable. Flexible communication connection, support RF, WiFi, Ethernet. Comply with European, Asia-Pacific safety regulations.

Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm

User-Friendly

Wirebox for easy connection

Online smart service

WiFi, RF, RS485 communication optional

Support export limitation

High Yields

Max. efficiency of 98.7%

Wide working voltage range

Integratedanti-PID function

Safe and Reliable

Leading IPM and Thin-film design,

More reliable

String monitoring and fuse protection

DC/AC type II SPD

IP65 protection rating


Three Phase Grid Tied Inverter Features:

  • Maximum efficiency of 99%
  • Multi MPP controller and MTL string
  • 8 strings intelligent monitoring and Fuse protection
  • Internal DC switch and Transformerless
  • Type II surge arresters for both DC and AC Anti-PID for PV module
  • Optional AC switch / AFCI function Supporting AC power supply
  • Compact design and easy installation Comprehensive warranty program
  • 3 phases that balance the output power
  • 2 MPP trackers, handle two compass angles
  • Asymmetrical MPP load possible
  • Wide DC voltage range of 200-1000V
  • Withstands high ambient temperatures (ceiling inverter possible)
  • No blowers - no noise, no fan defect
  • IP65 approved - can sit outdoors
  • Possibility of Growatt web monitor system, monitor production on smartphone / PC
  • 5 year warranty which can be extended to 10 years


Product Details:

Datasheet 30000TL3-SE 33000TL3-SE 4000TL3-SE 40000TL3-NSE 50000TL3-SE
Input Data
Max recommended PV Power (for module STC) 37500W 41250W 50000W 50000W 60000W
Max DC voltage 1000V
Start Voltage 250V
MPPT voltage range 200V-1000V
Nominal voltage 580V 695V 580V 720V
Max. input current 34A/34A 38A / 38A
Max. input current per string 12A
Number of MPP trackers / strings per MPP tracker 2/4+4
Output (AC)
Rated AC output power 30kW 33kW 40KW 40kW 50kW
Max. AC apparent power 33kVA 33kVA 40kVA 44.4kVA 55.5kVA
Max. output current 44A 48A 48A 64.5A 64.5A
AC nominal voltage 400V/340V～400V 400V/340V～400V 480V/442V～528V 500V/425V～560V
AC grid frequency 50Hz/60Hz ±5Hz
Power factor 0.8 leading - 0.8 lagging
THDi <3%
AC grid connection type 3W+N+PE 3W+PE 3W+N+PE 3W+PE
Efficiency
Max.efficiency 98.9% 99%
Euro - eta 98.4% 98.5%
MPPT efficiency 99.9%
Protection Devices
DC reverse polarity protection yes
DC Switch yes
DC Surge protection Type II
Ground fault monitoring yes
Output short circuit protection yes
AC Surge protection Type II
General Data
Dimensions (W / H / D) in mm 440/660/270
Weight 46kg
Operating temperature range -25 °C ... +60 °C
Noise emission (typical) C50 dB(A)
Altitude 4000m
Self-consumption night < 1W
Topology Transformerless
Cooling concept Smart cooling
Environmental Protection Rating IP65
Relative humidity 0~100%
Features
Display Graphic LCD
Interfaces: RS232/R485/WiFi/ LAN/GPRS yes / yes / opt / opt / opt
Warranty:5 years / 10 years yes / opt

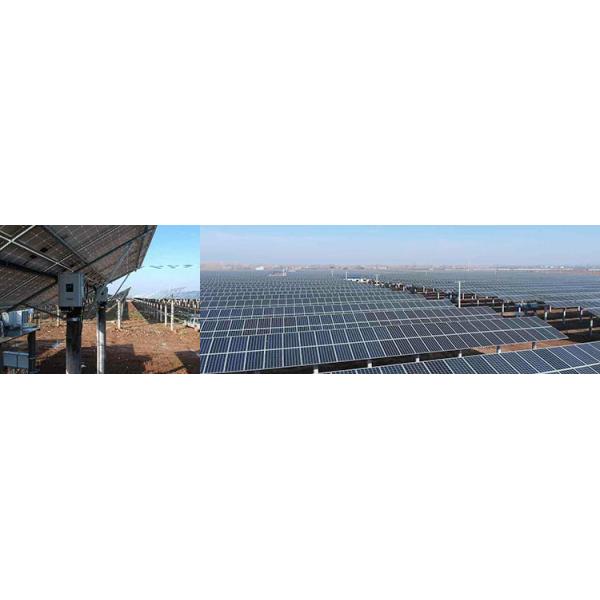

30KW to 50KW Three Phase Grid Tied Inverter Application:

Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm

Commercial 50KW Wind Turbine Grid Tie Inverter Three Phase 440×660×270 Mm
