Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
Specifications
Brand Name :
URILIC
Model Number :
Mobile Energy Vehicle Solar Wind Hybrid System
Certification :
ISO9001,CE,UL,IEC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/ month
Delivery Time :
5-30 work days
Packaging Details :
Multiple packaging
Product Name :
Solar Wind Hybrid System
Solar Panels :
Design as needed
Wind Turbines :
600W, 1000W
Controller Type :
MPPT Controller
Design life :
At least 20 years
Usage :
Off Grid, Household power supply
Wind Turbine Connection :
Flange connection
System :
Household Power Supply Solar Wind Hybrid System
Description

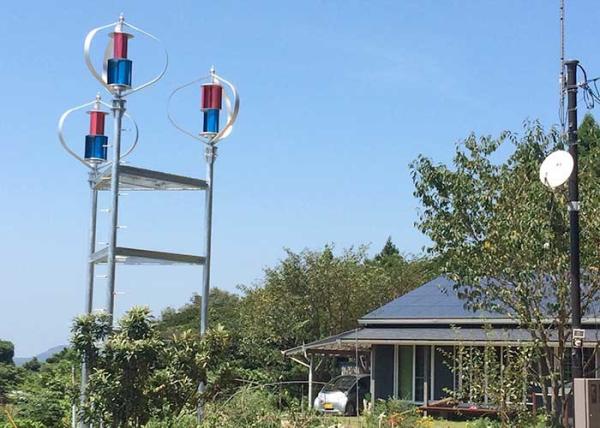

Household Power Supply Solar Wind Hybrid System Of House Power Supply System In Japan

Japan is an island country on the west coast of the Pacific Ocean. It is a temperate maritime monsoon climate that is mild and humid throughout the year. More plum rain in June, more typhoons in summer and autumn. Japan is a world model in many aspects such as environmental protection and resource utilization. Its citizens generally have good education, living standards and national quality. Rich in wind and solar energy resources, suitable for wind and solar hybrid power supply systems.

Home wind and solar hybrid power systems rely on wind turbines, solar panels, controllers, inverters, batteries and other accessories to intelligently integrate power to the user.


A natural wind energy wind turbine and a solar energy solar panel combined power supply system. The structure is simple and the appearance is beautiful. It is an organic combination of practicality and art. Through this energy-saving, environmentally friendly, low-carbon new energy landscape complementary intelligent power supply system, it provides more choices for high-quality, valuable outdoor activities, and also illuminates a beautiful life.

Hot-selling Maglev Vertical Axis Wind Turbine:

Items

60024/48

100024/48

Rated power

600W

1000W

Dimension
(Height/Diameter)

Ø1100/1250

Ø1500/1760

Weight

32kg / 35kg

55 kg / 57kg

Blade material

Aluminum Alloy

Aluminum Alloy

Blade quantity

3

3

Swept area ㎡

1.2

1.8

Min starting wind speed

1.3m/s

1.5 m/s

Cut-in wind speed

2 7m/s

3.5m/s

Rated wind speed

12m/s

13m/s

Cut-off wind speed

15m/s

15m/s

Survival wind speed

65m/s

60m/s

Generator type

AC,3Phases

AC,3Phases

Controller Output Voltage

24V/48V

24V/48V

Controller Braking System

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

Ambient Temperature

-40～50 ℃

-40～50 ℃

Noise

Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db

Solar Panel Configuration:

Model U280M-20 U285M-20 U290M-20
Peak Power (W) 280±3% 285±3% 290±3%
Open circuit voltage (V) 38.2 38.2 38.2
Peak Voltage (V) 31.5 31.5 31.5
peak current (A) 8.89 9.08 9.20
Short-circuit current (A) 9.51 9.68 9.85
Cell efficiency 19.6% 20.0% 20.4%
Component Efficiency 17.1% 17.4% 17.7%
Maximum overcurrent (A) 15A
Maximum system voltage (V) 1000V DC
Rated operating temperature 48±2°C
Working temperature range -40°C- +85°C
Current temperature coefficient 0.1%/°C
Voltage temperature coefficient -0.37%/°C
Power Temperature Coefficient 0.45%/°C
Solar Cell 156*156*0.19mm
Number of cells 60 pcs
Size 1650*992*35mm
Weight 19.0 kgs
Surface Packaging Low iron tempered glass/3.2mm
Sealant Ethylene Vinyl Acetate (EVA)
Border Anodized Aluminum/Silver
Junction Box Waterproof Level ≥IP65
Pre-wind pressure 2400Pa
Back wind pressure 2400Pa
Maximum hail impact 25mm/ 23m/s

System Features:

Both wind and solar energy are clean energy. With the maturity of photovoltaic power generation technology and wind power generation technology and the continuous improvement of products in the process of practical use, it has laid a foundation for the promotion and application of wind and solar hybrid power generation systems. The wind-solar hybrid power generation system promotes the development of China's energy conservation and environmental protection cause and promotes the construction of a resource-saving and environment-friendly society.

Household Power Supply Combined Solar And Wind Energy System 20 Years Design Life
In short, it is believed that with the reduction of equipment material costs, the development of science and technology, and the introduction of government support policies, the clean, green and environmentally friendly new energy power generation system will be more widely used.
