Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate
Specifications
Brand Name :
URILIC
Model Number :
80W, 85W
Certification :
UL,CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Plywood box
Product name :
monocrystalline solar module
Power :
80W, 85W
Size :
765*666*30mm
Weight :
7.0kg
Solar cell :
Mono 156*78 Cell
Frame color :
Silver or Black
Front cover :
3.2mm High Transmission low Iron tempered glass
Solar panel :
Monocrystalline 80w 85W Solar Panel
Description

80W-85W-18V Solar Power Solar Panels Monocrystalline Solar Cells

Description:
The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.

Features:

  1. High efficiency monocrystalline solar power panel.
  2. Outstanding low-light performance.
  3. High transmission tempered glass ensure high quaility solar panel.
  4. Solar cells solar panel with durable anodized aluminum frame.
  5. Efficient protection from frame deformation and water accumulation.
  6. Rugged design to withstand high wind pressure and snow load, easy installation.


Product Details:

Model U80M-12 U85M-12
Peak Power (W) 80±3% 85±3%
Open circuit voltage (V) 21.6 21.6
Peak Voltage (V) 18.0 18.0
peak current (A) 4.45 4.72
Short-circuit current (A) 4.84 5.05
Cell efficiency 19.0% 20.0%
Maximum overcurrent (A) 10A
Maximum system voltage (V) 1000V DC
Rated operating temperature 48±2°C
Working temperature range -40°C- +85°C
Current temperature coefficient 0.1%/°C
Voltage temperature coefficient -0.37%/°C
Power Temperature Coefficient 0.45%/°C
Solar Cell 156*78*0.19mm
Number of cells 36 pcs
Size 765*666*30mm
Weight 7.0 kgs
Surface Packaging Low iron tempered glass/3.2mm
Sealant Ethylene Vinyl Acetate (EVA)
Border Anodized Aluminum/Silver
Junction Box Crimping + Welding Treatment
Pre-wind pressure 2400Pa
Back wind pressure 2400Pa
Maximum hail impact 25mm/ 23m/s


Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate

80W-85W-18V small solar panel assembly size chart

Our advantage:

  1. High conversion efficiency, high-transmission rate.
  2. Energy saving, environmental-friendly, Safty, No pollution.
  3. Advanced technology, strict quality control system.
  4. Easy installation, safe operation, free maintenance.
  5. 10-year product warranty,12-year warranty at 90% power output,25-year warranty at 80% power output.
  6. Quality in priority, clients the upmost.
Solar Panel Details Show:

Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate

Solar Cell

High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID

Frame

Frame thinkness>18mm

Oxidation Film>15Pm

TUV&UL standard sillica gel

Ability to resist 5400Pa mechanical pressure

Good anti-corruption performance in seaside environment

Solar junction box

PPO material, IP67.
Quality diode ensures module running safety

Heat dissipation

Long service life

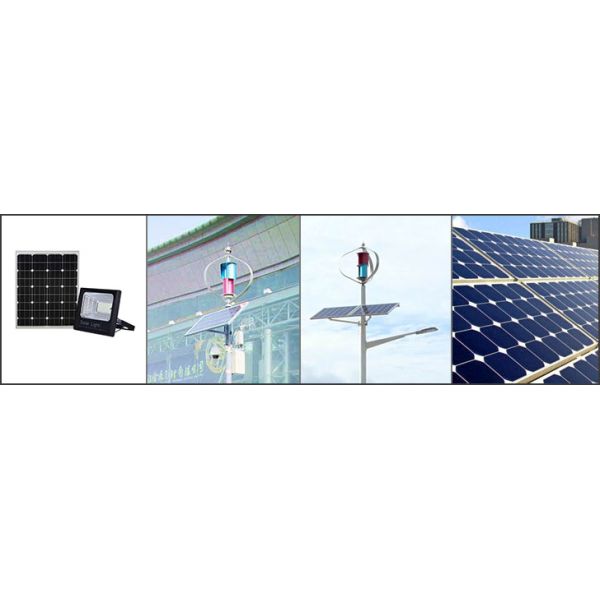

Solar Panels Application:

Safety 80 Watt Crystalline Silicon Solar Panels High - Transmission Rate

Solar Lighting

Solar Camera

Solar Wind Hybrid System

 Household Solar Panel
