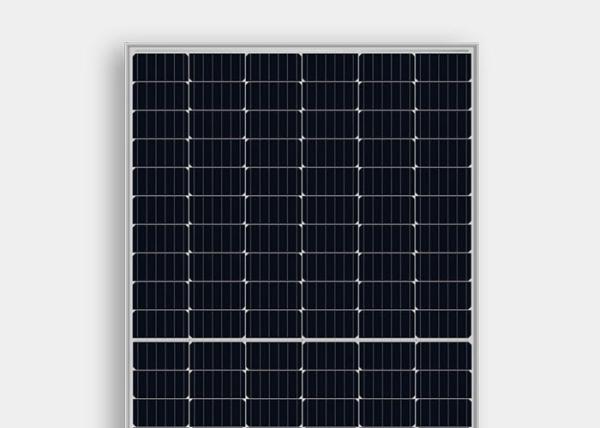

Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System
Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System
Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System
Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System
Specifications
Brand Name :
URILIC
Model Number :
305W, 310W, 315W, 320W, 325W
Certification :
ISO9001,CE,UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
3 working days after received full payment
Packaging Details :
Plywood
Product Name :
High Efficiency Solar Panels
Nominal Power :
305W, 310W, 315W, 320W, 325W
Size :
1672*991*35mm
Weight :
16.8kg
Cell Number :
120
Junction IP :
IP67
Frame Type :
Anodized Aluminium Alloy
Usage :
Solar system, Solar wind hybrid system
Description

305W-325W High Efficiency Solar Panels High Performance Solar Panels CN120

Description:

The high performance solar panels CN120 provides our customers with superior performance and reliability. Photovoltaic panels reduce your energy costs - reducing the utility bills for grid-connected systems and offsetting fuel costs and maintenance costs for generator sets. When integrated with energy storage and microgrid master controllers, renewable energy can replace almost all of the energy in traditional energy sources.


We are committed to providing the best system solutions and promoting the global application of single crystal technology.

Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System

Technical Data:

Model No. CN120-305M CN120-310M CN120-315M CN120-320M CN120-325M
Warranty
Product Warranty 10 Years
Power Warranty 10 Years of 93.05% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax) 305 Wp 310 Wp 315 Wp 320 Wp 325 Wp
Voltage at Maximum Power (Vmpp) 33.1 V 33.3 V 33.7 V 33.9 V 34.1 V
Current at Maximum Power (Impp) 9.21 A 9.3 A 9.36 A 9.43 A 9.52 A
Open Circuit Voltage (Voc) 40.1 V 40.3 V 40.6 V 40.9 V 41.1 V
Short Circuit Current (Isc) 9.78 A 9.86 A 9.94 A 10.02 A 10.12 A
Panel Efficiency 18.4 % 18.7 % 19 % 19.3 % 19.6 %
Power Tolerance (Positive) + 1.5 % + 1.5 % + 1.5 % + 1.5 % + 1.5 %
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 225.9 Wp 229.6 Wp 233.4 Wp 237.1 Wp 240.8 Wp
Voltage at Maximum Power (Vmpp) 30.6 V 30.8 V 31.1 V 31.3 V 31.5 V
Current at Maximum Power (Impp) 7.38 A 7.46 A 7.5 A 7.56 A 7.64 A
Open Circuit Voltage (Voc) 37.4 V 37.7 V 37.9 V 38.2 V 38.4 V
Short Circuit Current (Isc) 7.88 A 7.94 A 8.01 A 8.08 A 8.16 A
Temperature 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.37 %/°C
Temperature Coefficient of Voc -0.286 %/°C
Temperature Coefficient of Isc 0.057 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1672x991x35 mm
Weight 16.8 kg
Cell Type PERC
Cell Number 120
Glass Type Tempered
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 67
Cable Crossection 4 mm2
Cable Length 300 mm

Mechanical Drawing:

Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System

High Performance Solar Panels Features:

  • Positive power tolerance (0～+5W) guaranteed.
  • High module conversion efficiency (up to 19.6%).
  • Slower power degrandation enabled by low LID Mono PERC technology: first year <2%, 0.55% year 2-25.
  • Solid PID resistance ensured by solar cell process optimization and carful module BOM selection.
  • Reduced resistive loss with lower operation current.
  • Higher energy yield with lower operating temperature.
  • Reduced hot spot risk with optimized electurical design and lower operating current.

I-V Curve:

Waterproof 325W High Performance Solar Panels For Solar Wind Hybrid System
