340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120
340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120
340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120
340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120
Specifications
Brand Name :
URILIC
Model Number :
340W, 345W, 350W, 355W, 360W
Certification :
ISO9001,CE,UL
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
3 working days after received full payment
Packaging Details :
Plywood
Product Name :
High Efficiency Solar Panels
Nominal Power :
340W, 345W, 350W, 355W, 360W
Size :
1762*994*35mm
Weight :
19.0kg
Cell Number :
120
Junction IP :
IP67
Frame Type :
Anodized Aluminium Alloy
Usage :
Solar system, Solar wind hybrid system
Description

340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120

Description:

The high performance solar panels CN120 provides our customers with superior performance and reliability. Photovoltaic panels reduce your energy costs - reducing the utility bills for grid-connected systems and offsetting fuel costs and maintenance costs for generator sets. When integrated with energy storage and microgrid master controllers, renewable energy can replace almost all of the energy in traditional energy sources.


We are committed to providing the best system solutions and promoting the global application of single crystal technology.

340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120

Technical Data:

Model No. CN120-340M CN120-345M CN120-350M CN120-355M CN120-360M
Warranty
Product Warranty 10 Years
Power Warranty 10 Years of 93.05% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax) 340 Wp 345 Wp 350 Wp 355 Wp 360 Wp
Voltage at Maximum Power (Vmpp) 31.4 V 31.6 V 31.8 V 32.0 V 32.2 V
Current at Maximum Power (Impp) 10.83 A 10.92 A 11.01 A 11.10 A 11.18 A
Open Circuit Voltage (Voc) 38.1 V 38.3 V 38.5 V 38.7 V 38.9 V
Short Circuit Current (Isc) 11.62 A 11.72 A 11.81 A 11.91 A 11.18 A
Panel Efficiency 19.4 % 19.7 % 20.0 % 20.3 % 20.6 %
Power Tolerance (Positive) + 1.5 % + 1.5 % + 1.5 % + 1.5 % + 1.5 %
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 251.9 Wp 255.6 Wp 259.3 Wp 263.0 Wp 266.7 Wp
Voltage at Maximum Power (Vmpp) 29.0 V 29.2 V 29.4 V 29.6 V 29.7 V
Current at Maximum Power (Impp) 8.68 A 8.76 A 8.83 A 8.90 A 8.97 A
Open Circuit Voltage (Voc) 35.6 V 35.7 V 35.9 V 36.1 V 36.3 V
Short Circuit Current (Isc) 9.37 A 9.45 A 9.52 A 9.60 A 9.67 A
Temperature 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.37 %/°C
Temperature Coefficient of Voc -0.286 %/°C
Temperature Coefficient of Isc 0.057 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1762x994x35 mm
Weight 19.0 kg
Cell Type PERC
Cell Number 120
Glass Type Tempered
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 67
Cable Crossection 4 mm2
Cable Length 300 mm
Packaging 30pcs per pallet (180pcs per 20'GP) (780pcs per 40'HC)

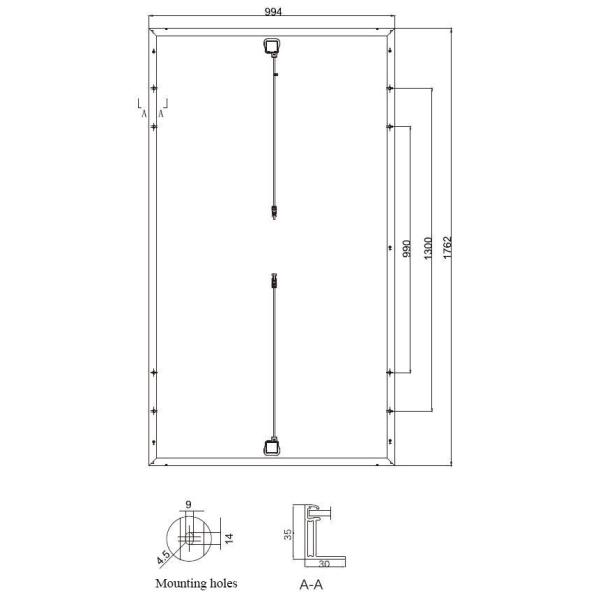

Mechanical Drawing:

340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120

High Performance Solar Panels Features:

  • Positive power tolerance (0～+5W) guaranteed.
  • High module conversion efficiency (up to 19.6%).
  • Slower power degrandation enabled by low LID Mono PERC technology: first year <2%, 0.55% year 2-25.
  • Solid PID resistance ensured by solar cell process optimization and carful module BOM selection.
  • Reduced resistive loss with lower operation current.
  • Higher energy yield with lower operating temperature.
  • Reduced hot spot risk with optimized electurical design and lower operating current.

I-V Curve:

340W-360W High Efficiency Solar Panels Super High Efficiency Solar Panels CN120
