300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W
Specifications
Brand Name :
URILIC
Model Number :
FLHB-V4M6-300W
Certification :
ETL, ENEC, TUV, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Wattage :
300W
Product Type :
Outdoor LED Flood Lights
Light Size :
642*340*144.2mm, ±5mm
Net Weight :
13.6kg,±0.1kg
Leds qty. :
168pcs
Lumen :
46500 lm
Working Voltage :
AC 90V-305V 50/60Hz
Lifespan :
50,000+ hours
Description

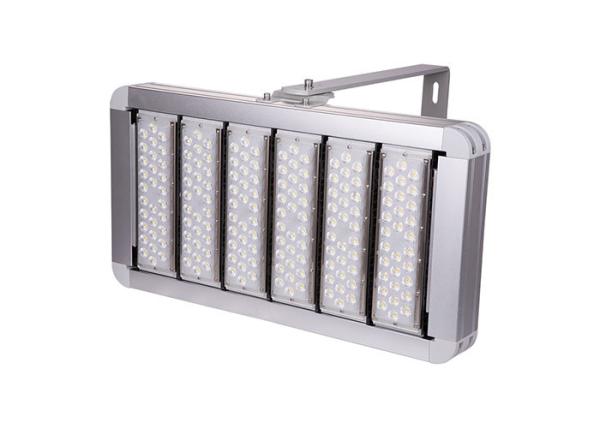

300 Watt LED Flood Light FLHB-V4M6 High Bay Light Outdoor LED Flood Lights

Description:

Durable, long lifetime up to 50,000 hours; No need frequent lamps replacement and regular maintenance. Use cooling duct design, product overall weight reduction and thermal performance, reduce light decline, and prolong lamp’s lifetime.

With popular CHEM modular design, can effectively reduce the maintenance costs later use.Use efficient zero air gap lens technology, achieves zero light loss. It’s 8% higher efficiency than other similar products, and light transmission rate reaches 98%.

Low-energy, use high efficiency constant current driver, 60% energy-saving; With overcurrent, overvoltage, lightning, high temperature protection to fully guarantee the lifespan and stable performance. Green product, no UV or IR radiation, no mercury pollution.

Product Details:

Model

FLHB-V4M6-300W

Power

300W

CCT

3000K/4000K/5000K/6000K

Beam angle

25°/ 40°/ 60°/ 90°

Chip brand

Bridgelux

Leds qty.

168pcs

CRI

≥70

Efficiency

155-160lm/w

Lumen

46500 lm

IP IK Rate

IP66,IK10

Working voltage

AC 90-305V 50/60Hz

Working temperature

-40℃~50℃, 20%~90% H.R

Storage temperature

-40℃~85℃, 10%~90% H.R.

Power efficiency

94%

PF

>0.98

Lifespan

50000 Hours

Housing material

AL6063-T5

Light size

642*340*144.2mm ±5mm
Carton size 720*410*225mm ±5mm

N.W.

13.6kg ±0.1kg

Mechanical Drawing:

300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W

Quick Detail:

  1. Fast response, no strobe; wide operating voltage range.
  2. Simple and elegant appearance, stylish and classic.
  3. High pressure die cast aluminum alloy housing.
  4. Anti-corrosion with Electrophoresis process.
  5. High performance design with multi-chips Package 5050 LED source and exclusive Lens to stable performance,low light failure and no dead lights.
  6. The light transmittance up to 98%.Luminous efficacy up to 160-170lm/w.
  7. Excellent operating temperature -40°C ~ 50°C
  8. Green product,no UV,IR radiation or mercury pollution Passed IEC62471.
  9. With Excellent housing design reach IP66/IK10 rating.

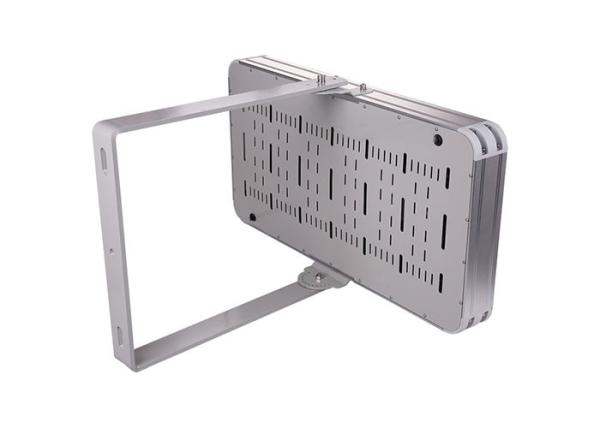

  10. Installation method is option by wall mounted & pole mounted
  11. 0-10V,DALI system,Microwave motion upon request.
  12. Life-span over 50,000 hours, 5 years warranty.

Distribution Curve:

25°,40°,60°,90°,145x100°,150° for option,Uniform light distribution apply to different industrial light project.

300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W

Applications:

The 300 Watt LED Flood Light FLHB-V4M6 High Bay Light Outdoor LED Flood Lights applied to workshop, industrial building, sports center, gas station, parking lots, waiting room, train station, harbor, wharf and other large energy-saving lighting.

300 Watt Tunnel Lighting Fixtures , Durable Led Floodlights Sports Field 160 Lm/W

With building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc

Maintenance:

  1. Cut off outdoor LED flood lights power.
  2. Remove male and female connectors or power supply wires that need to be replaced, remove the screws.
  3. Replacing with new components.
  4. Re-tighten Replacement, connect the male and female connectors and wires of power supply.
  5. Lock up the screws.
  6. Repairs completed.
