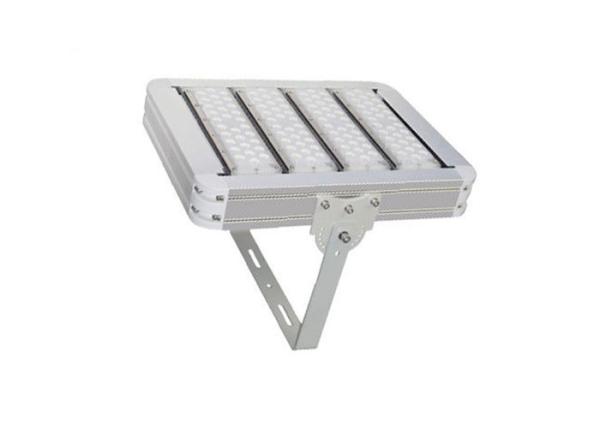

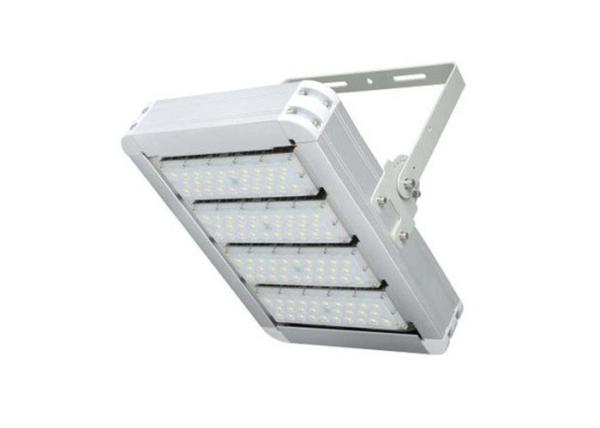

High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
Specifications
Brand Name :
URILIC
Model Number :
FLHB-V4M4-200W
Certification :
ETL, ENEC, TUV, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Wattage :
200W
Product Type :
Outdoor LED Flood Lights
Light Size :
462*340*144.2mm, ±5mm
Net Weight :
9.0kg,±0.1kg
Leds qty. :
112pcs
Housing material :
AL6063-T5
Input Voltage :
90V-305V AC
Lifespan :
50,000+ hours
Description

200W FLHB-V4M4 High Bay Light Outdoor LED Flood Lights 200W Indoor LED High Bay Light

Description:

Use cooling duct design, product overall weight reduction and thermal performance, reduce light decline, and prolong lamp’s lifetime. With popular CHEM modular design, can effectively reduce the maintenance costs later use.Use efficient zero air gap lens technology, achieves zero light loss. It’s 8% higher efficiency than other similar products, and light transmission rate reaches 98%. Durable, long lifetime up to 50,000 hours; No need frequent lamps replacement and regular maintenance. Low-energy, use high efficiency constant current driver, 60% energy-saving; With overcurrent, overvoltage, lightning, high temperature protection to fully guarantee the lifespan and stable performance.

Mechanical Drawing:

High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

Product Details:

Model

FLHB-V4M4-200W

Power

200W

CCT

3000K/4000K/5000K/6000K

Beam angle

25°/ 40°/ 60°/ 90°

Chip brand

Bridgelux

Leds qty.

112pcs

CRI

≥70

Efficiency

155-160lm/w

Lumen

31000m

IP IK Rate

IP66,IK10

Working voltage

90-305V

Working temperature

-40℃~50℃, 20%~90% H.R

Storage temperature

-40℃~85℃, 10%~90% H.R.

Power efficiency

93%

PF

>0.98

Lifespan

50000 Hours

Housing material

AL6063-T5

Light size

462*340*144.2mm ±5mm
Carton size 540*410*225mm ±5mm

N.W.

9.0kg ±0.1kg

Quick Detail:

  1. Simple and elegant appearance, stylish and classic.
  2. High pressure die cast aluminum alloy housing.
  3. Anti-corrosion with Electrophoresis process.
  4. High performance design with multi-chips Package 5050 LED source and exclusive Lens to stable performance,low light failure and no dead lights.
  5. The light transmittance up to 98%.Luminous efficacy up to 160-170lm/w.
  6. Excellent operating temperature -40°C ~ 50°C
  7. Green product,no UV,IR radiation or mercury pollution Passed IEC62471.
  8. With Excellent housing design reach IP66/IK10 rating.
  9. Installation method is option by wall mounted & pole mounted
  10. 0-10V,DALI system,Microwave motion upon request.
  11. Life-span over 50,000 hours, 5 years warranty.

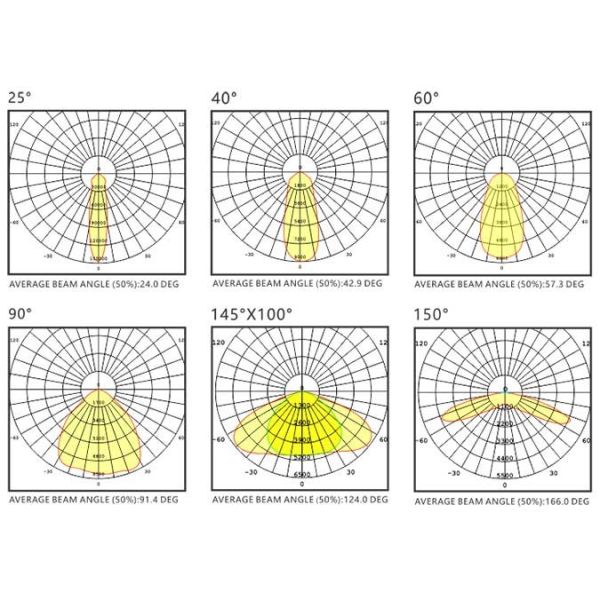

Distribution Curve:

25°,40°,60°,90°,145x100°,150° for option,Uniform light distribution apply to different industrial light project.

High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

Applications:

The 200W FLHB-V4M4 High Bay Light Outdoor LED Flood Lights 200W Indoor LED High Bay Light are suitable for indoor and outdoor applications such as warehouses, tunnel lighting, advertising, gas stations and factory lighting.

Widely used in bars, clubs, hotels, stages, park, sculpture, square, parking lot, playground, shopping mall, plazas, exhibition hall, commercial buildings facade, mosques, museums, art galleries, historical buildings, factories, gymnasiums, stadium, isles, yard, advertising boards, billboards, buildings, lawns, national green lighting projects.

High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

With building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc
