Specifications
Brand Name :
URILIC
Model Number :
FLHB-V4M2-100W
Certification :
ETL, DLC, ENEC, TUV, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS/week
Delivery Time :
5-15 days
Packaging Details :
Carton box
Product Name :
Outdoor LED Flood Lights
Wattage :
100W
Working temperature :
-40℃~50℃，20%~90% H.R
Input Voltage :
90V-305V AC
Housing material :
AL6063-T5
Rated Lifespan :
50,000+ hours
Light Size :
340*282.4*144.2mm, ±5mm
Net Weight :
4.85kg,±0.1kg
Description

100W Flood Light FLHB-V4M2 Outdoor LED Flood Lights Indoor LED High Bay Light

Description:

Use efficient zero air gap lens technology, achieves zero light loss. It’s 8% higher efficiency than other similar products, and light transmission rate reaches 98%. Use cooling duct design, product overall weight reduction and thermal performance, reduce light decline, and prolong lamp’s lifetime. With popular CHEM modular design, can effectively reduce the maintenance costs later use. With Garden and Landscape Lighting, Tree Uplighting,Statue and Monument Lighting,Architectural Wall Washing Facade Lighting,Flagpole Lighting ,Tunnel Lighting,Large Sign lighting.

Product Details:

Model

FLHB-V4M2-100W

Power

100W

CCT

3000K/4000K/5000K/6000K

Beam angle

25°/ 40°/ 60°/ 90°

Chip brand

San’an 22*35mil(8C1B)

Leds qty.

56pcs

CRI

≥70

Efficiency

155-160 lm/w

Lumen

15500 lm

IP IK Rate

IP66,IK10

Working voltage

AC90-305V

Working temperature

-40℃~50℃, 20%~90% H.R

Storage temperature

-40℃~85℃, 10%~90% H.R.

Power efficiency

93%

PF

>0.98

Lifespan

50000 Hours

Housing material

AL6063-T5

Light size

340*282.4*144.2mm ±5mm
Carton size 360*410*215mm ±5mm

N.W.

4.85kg ±0.1kg

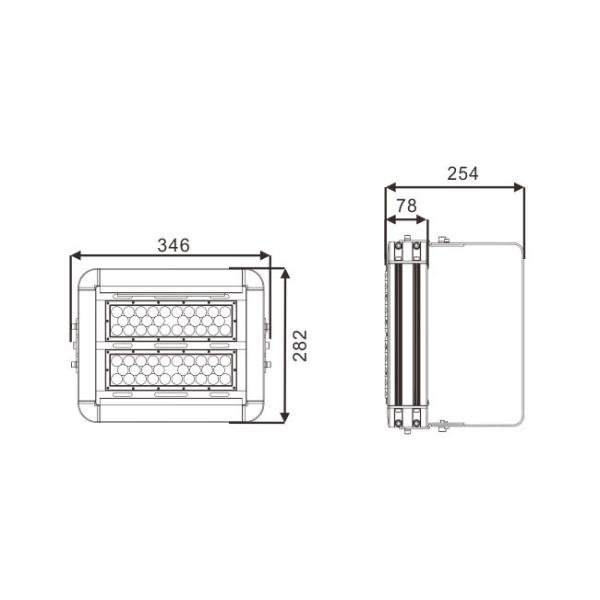

Mechanical Drawing:

Energy Saving Outdoor Led Tennis Court Lighting 100 Watt ROHS Approved

Quick Detail:

  1. Simple and elegant appearance, stylish and classic.
  2. High pressure die cast aluminum alloy housing.
  3. Anti-corrosion with Electrophoresis process.
  4. High performance design with multi-chips Package 5050 LED source and exclusive Lens to stable performance,low light failure and no dead lights.
  5. The light transmittance up to 98%.Luminous efficacy up to 160-170lm/w.
  6. Excellent operating temperature -40°C ~ 50°C
  7. 180° adjusted angle available for outdoor & indoor lighting application.
  8. Green product,no UV,IR radiation or mercury pollution Passed IEC62471.
  9. With Excellent housing design reach IP66/IK10 rating.
  10. Installation method is option by wall mounted & pole mounted
  11. 0-10V,DALI system,Microwave motion upon request.
  12. CE,ROHS,CB,UL,LM-80 approved.
  13. Life-span over 50,000 hours, 5 years warranty.

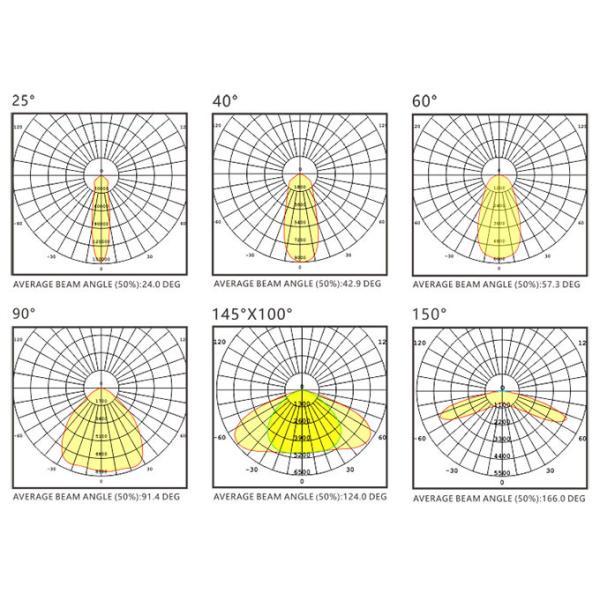

Distribution curve:

25°,40°,60°,90°,145x100°,150° for option,Uniform light distribution apply to different industrial light project.

Energy Saving Outdoor Led Tennis Court Lighting 100 Watt ROHS Approved

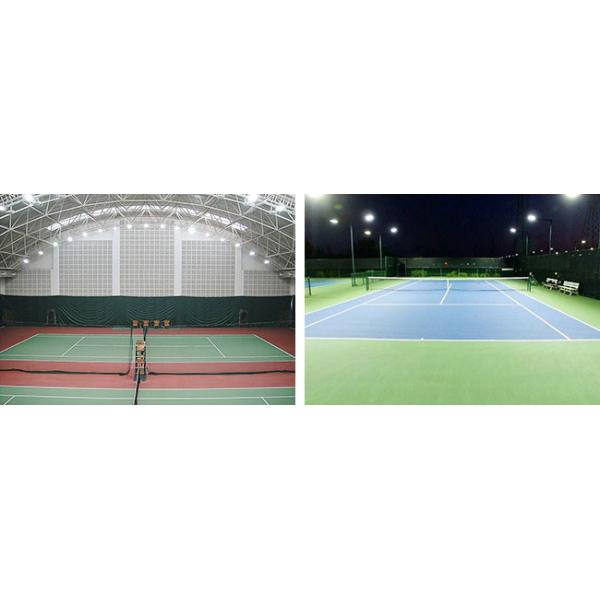

Applications:

Widely used in bars, clubs, hotels, stages, park, sculpture, square, parking lot, playground, shopping mall, plazas, exhibition hall, commercial buildings facade, mosques, museums, art galleries, historical buildings, factories, gymnasiums, stadium, isles, yard, advertising boards, billboards, buildings, lawns, national green lighting projects, building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc

Energy Saving Outdoor Led Tennis Court Lighting 100 Watt ROHS Approved

Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.
