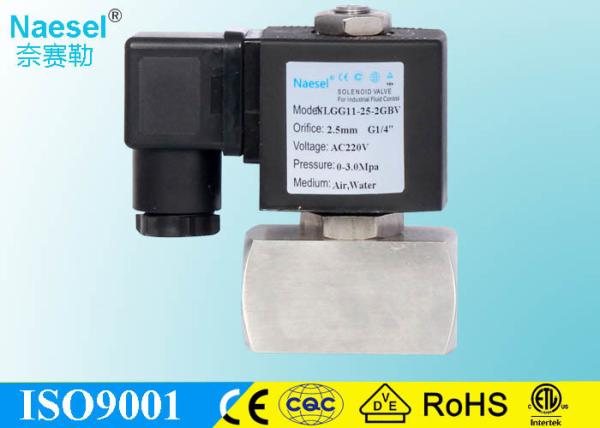

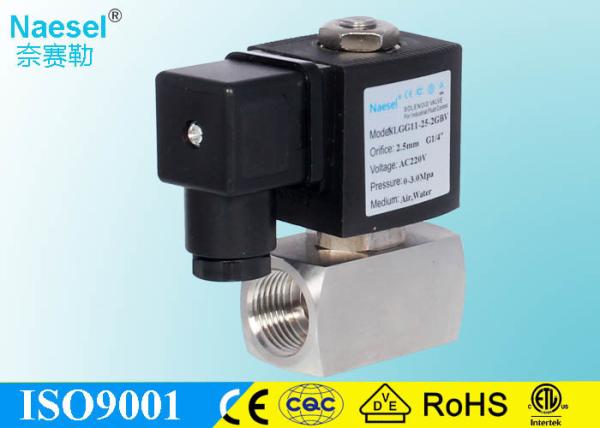

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve
Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve
Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve
Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve
Specifications
Brand Name :
Naesel
Model Number :
NLS41
Certification :
CE CQC TUV ROHS VDE Intertek ETL
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability :
10000PCS Per Month
Delivery Time :
3-7 days
Packaging Details :
carton with solid inner box as below photo
Port :
1/4", 3/8", 1/2"(NPT G thread)
Temperature :
-30℃~150℃（-22℉~302℉）
Thread :
NPT, G, BSPP Thread
Orifice :
9.0(mm)
Material :
brass, stainless steel 304,430, FKM,
Voltage :
DC:,12V, 24V, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ
Seal Material :
FKM PTFE
Fluid :
hot water, compressed air, steam, oil, etc.
Pressure :
0.01MPA~12.0MPA (1.45PSI~1700PSI)
Charactoristics :
high pressure system
Motion Type :
Pilot piston structure
Valve Type :
Normally Closed or Normally opened
Feature :
Low consumption coil
Guarantee :
15 month
Description

High Pressure Solenoid Valve 1000 PSI for Air Compressor or Injection Machine 1 / 4 3 / 8 1 / 2

High Pressure Solenoid Valve 1000 PSI for Air Compressor or Injection Machine 1 / 4 3 / 8 1 / 2

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLS41 9.0(mm) 2-1/4" G- G B-Brass P-PTFE GE11B 1-AC220V 2.DC24V

3-3/8" N- NPT S-SS304/316 V-Viton S91B 3-AC110V 4.DC12V

4-1/2" 5-AC24V

NLS41,High Pressure Solenoid Valve 1000 PSI for Air Compressor or Injection Machine 1 / 4 3 / 8 1 / 2

Example : NLS41 10 2 GST S91B1: NLS41 type, normal closed, 9.0mm orifice, G1/4", Stainless steel body, PTFE seals.

2. Solenoid Valve Specification

Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice: 1.0, 1.6(mm) PET seal:-40℃~150℃(-40℉~302℉)

Pressure: NLS41:0.00MPA~12MPA (0.0PSI~1740PSI) Port size: 1/4”, 3/8”, 1/2”

Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, Coils: GE11B,5.5VA(AC),3W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S91B, 22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston strcuture

Seal- PEEK PTFE 2. Suitable for air compressor

Armature- SS304 3. PTFE/Viton Seal

Plunger- SS430F 4. Low consumption coil(4.5W DC)

Stop- SS430F

Spring- SS304

Shading Rings- Copper

3. Detailed Information

High Pressure Solenoid Valve 1000 PSI for Air Compressor or Injection Machine 1 / 4 3 / 8 1 / 2

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(15W)
NLS41XXX

1/8"

1/4"

1/2"

 9.0 1.7 0.01Mpa

6.0Mpa

12.0Mpa

6.0Mpa

12.0Mpa

Brass

SS304

SS316

PTFE

Viton

S91B
GE11B

4. Diemsion

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve

6. More Product Photo and Certifications

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve

Dust Proof Timer Controlled Solenoid Valve , Custom Asco Steam Solenoid Valve

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
