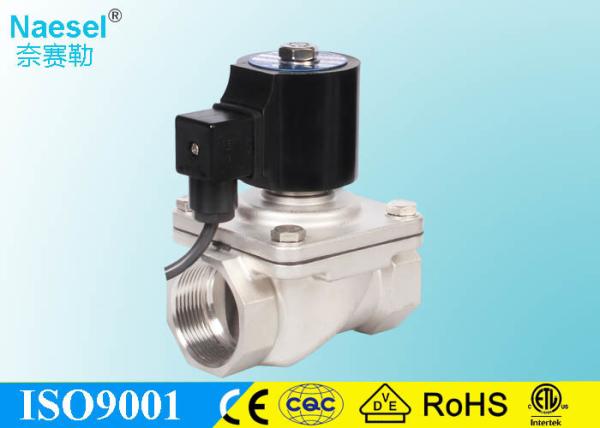

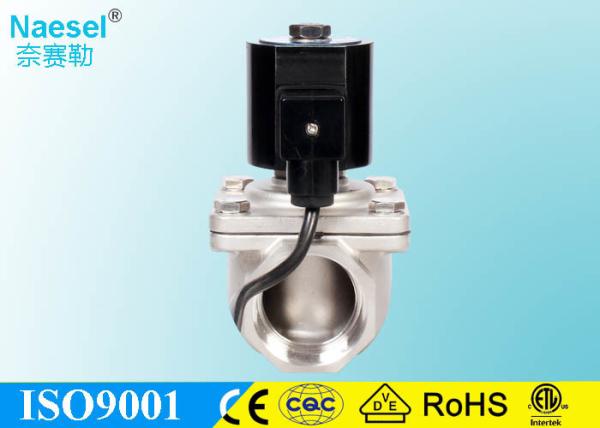

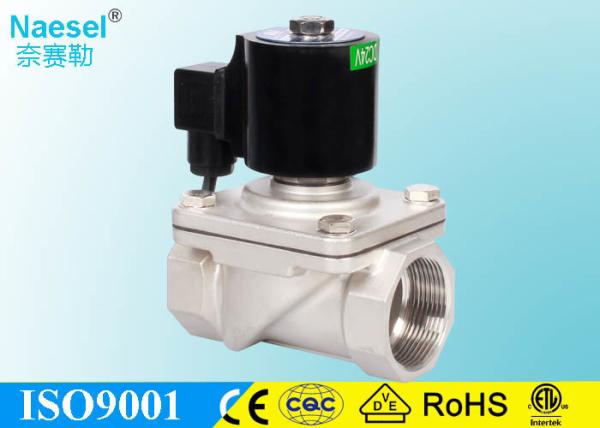

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
Specifications
Brand Name :
NAESEL
Model Number :
NLWU1
Certification :
CE
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C, Western Union, T/T, MoneyGram
Supply Ability :
10000PCS Per Month
Delivery Time :
2-7 days
Packaging Details :
Solid Paper Carton, within pallet over 10 cartons
Material :
UPVC or CPVC
Port :
3/8",1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"(NPT G) or flange
Fluid :
Water etc.
Orifice :
15, 20, 25, 32, 40, 50, 65, 80, 100(mm)
Seals :
NBR EPDM FKM(Viton)
Temperature :
-30~150℃
Coil Consumption :
26VA(AC), 13W(DC)
Guarantee :
15 Month
Feature 1 :
Diaphragm structure
Feature 2 :
Suitable for water fountain
Description

2 " inch water fountain solenoid valve underwater with water proof coil

2 " inch water fountain solenoid valve underwater with water proof coil

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLWU1 15, 20, 25, 1/2" to 4" G- G B-Brass V-FRM/Viton F14B 1-AC220V 2-DC24V

32, 40, 50 N- NPT N-NBR F24B 3-AC110V 4.DC12V

65, 80, 100 F-Flange E-EPDM 5-AC24V 6-DC6V

NLWU1, 2 " inch water fountain solenoid valve underwater with water proof coil

Example : NLWU115 NBE Y21H1: NLWU1 Series, NC, 15mm orifice, G1/2", brass body, EPDM seals, Coil F14B, AC220V.

2. Solenoid Valve Specification

Medium: Wate Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice: 15 , 20, 25, 32, 40, 50 (mm) EPDM seal:-30℃~120℃(-22℉~248℉)

Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NLWU11:0.01MPA~0.6MPA (1.45PSI~87PSI) Port thread: NPT, G Thread, Flange

Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2", F2-1/2"

F3", F4", F5", F6"

Voltage: DC:6VDC,12VDC, 24VDC Coils: F14B 26VA(AC)6IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC F24B 13W(DC),IP65,100%ED

Tolerance: ±10% Character: 1. Special for water fountain

Material: Body- Brass 2. 1/2" to 4 inch available

Seal- VITION, EPDM 3. Underwater application.

Armature- SS304

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

3. Dimension

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

4. Specification Detail

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(26VA) DC(13W)
NLWU115XXX 1/2" 15 4.5 0.0Mpa 0.5Mpa 0.5Mpa

Brass

Viton

(FKM)

EPDM

NBR

F14B

F24B
NLWU120XXX 3/4" 20 9.3 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU125XXX 1" 25 12 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU132XXX 1-1/4" 32 24 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU140XXX 1-1/2" 40 30 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU150XXX 2" 50 48 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU165XXX F2-1/2" 65 68 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU180XXX F3" 80 100 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B
NLWU1100XXX F4" 100 175 0.0Mpa 0.5Mpa 0.5Mpa

F14B

F24B

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

6. More Product Photo and Certifications

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

Water Fountain 2 Inch Solenoid Valve , Solenoid Actuator Valve With Water Proof Coil
