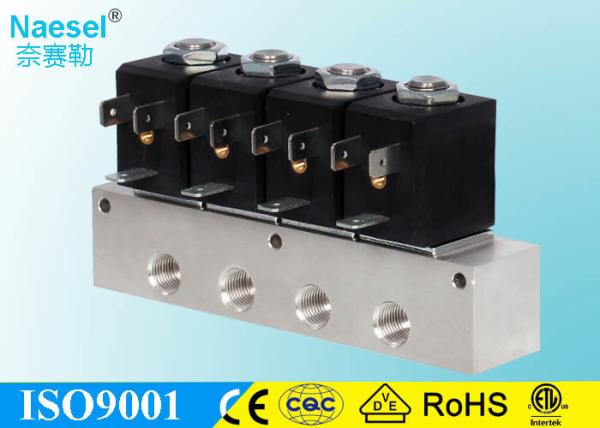

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve
Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve
Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve
Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve
Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve
Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve
Specifications
Brand Name :
NAESEL
Model Number :
NLHO11
Certification :
CE ROHS ETL VDE etc.
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000PCS Per Month
Delivery Time :
1-5 days
Packaging Details :
Solid paper carton and pallet packing
Coil Power :
AC22VA; DC17W
Pressure :
Medium
Power :
Solenoid and pneumatic
Structure :
Pilot and direct acting
Application :
Digital Water Curtain Fountain
Fluid :
Air, Water etc.
Temperature :
-10°C to 80 °C (NBR)
Coil :
IP68 Standard
Life time :
100,0000 times
Port Size :
1/8"; 1/4"
Thread :
G,BSP,NPT thread
Orifice :
5-10mm
Warranty :
1 and half year
Description

SStainless Steel Manifold Solenoid Valve Multi Unit Installation 24V 12V 1 / 8 to 1 / 2 NPT BSPP Threadtainless Steel Manifold Solenoid Valve Multi Unit Installation 24V 12V 1 / 8 to 1 / 2 NPT BSPP Thread

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve

Stainless Steel Manifold Solenoid Valve Multi Unit Installation 24V 12V 1 / 8 to 1 / 2 NPT BSPP Thread

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLHO 50-5.0 mm 1--1/8" G- G B-Brass N-NBR S11B 1-AC220V 2.DC24V

60-6.0mm 2--1/4" N- NPT S-SS304/316 V-FKM 3-AC110V 4.DC12V

11-10.0mm R- BSPT Aluminum 5-AC24V 6-DC6V

Stainless Steel Manifold Solenoid Valve Multi Unit Installation 24V 12V 1 / 8 to 1 / 2 NPT BSPP Thread

Example : NLHO11 GBN S11B1: NLHO11 Series, Normal closed, 5mm orifice, G1/2", brass body, NBR seals, Coil S11B, AC220V.

2. Solenoid Valve Specification

Medium: Air, water, etc. Temperature: NBR seal:-10℃~80℃(-22℉~302℉)

Orifice: 5,6, 10 (mm) Viton seal:-30℃~80℃(-22℉~302℉)

Pressure: NLHO:0.00MPA~0.1MPA (0.0PSI~14.5PSI)

Port thread: NPT, G Thread Port size: 1/8”, 1/4”,

Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: S11B 13VA(AC),11W(DC),Coil IP68,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC

Tolerance: ±10% Character: 1. Compact design to save the space.

Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.

Seal- VITION, NBR,

Armature- SS304

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

3. Detailed Information

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(9VA) DC(10W)
NLOG11251XXX 1/8" 2.5 0.18 0.0Mpa 1.0Mpa 1.0Mpa

Brass

SS304

NBR

EPDM

Viton

(FKM)

 SA11B
NLOG11301XXX 1/8" 3.0 0.3 0.0Mpa 1.0Mpa 1.0Mpa SA11B
NLOG11252XXX 1/4" 2.5 0.18 0.0Mpa 1.0Mpa 1.0Mpa SA11B
NLOG11302XXX 1/4" 3.0 0.3 0.0Mpa 1.0Mpa 1.0Mpa SA11B

4. Diemsion

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve

6. More Product Photo and Certifications

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve

Stainless Steel 1 Inch Plastic Solenoid Valve , Multi Unit Installation Air Actuated Solenoid Valve

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
