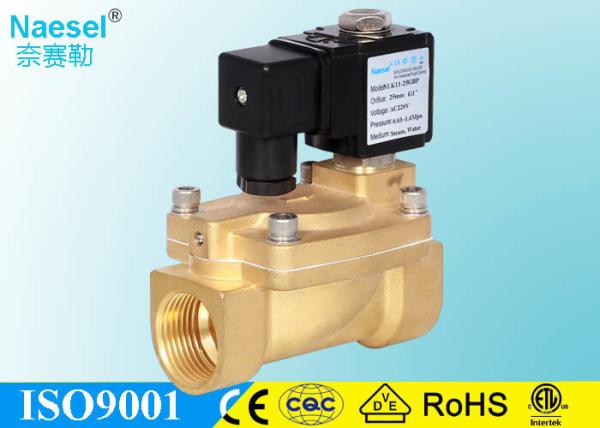

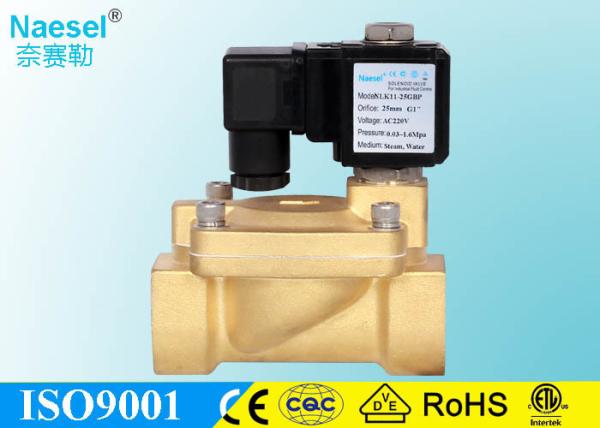

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation
Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation
Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation
Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation
Specifications
Brand Name :
Naesel
Model Number :
NLK11
Certification :
CE CQC TUV ROHS VDE Intertek ETL
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability :
10000PCS Per Month
Delivery Time :
1-3 days
Packaging Details :
carton with solid inner box as below photo
Temperature :
-30℃~150℃（-22℉~302℉）
Port :
3/8", 1/2", 3/4", 1" NPT BSPP
Material :
brass, stainless steel 304,430, FKM,
Thread :
NPT, G, BSPP Thread
Orifice :
12, 15, 20, 25(mm)
Voltage :
DC:,12V 24V, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ
Seal Material :
FKM EPDM NBR
Fluid :
Air, water,oil, etc.
Pressure :
0.03MPA~1.6MPA (4.35PSI~232PSI)
Charactoristics :
started at 0.03 psi with low power consumption
Motion Type :
Pilot diaphragm
Valve Type :
Normally Closed
Connection type :
Thread or Flange
Operation capability :
1 million times
Description

16BAR Solenoid Valve 1 Inch Pilot Diaphragm Low Consumption for Water Pipe

16BAR Solenoid Valve 1 Inch Pilot Diaphragm Low Consumption for Water Pipe

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation

1. How To Order

Model Orifice Thread Body Seal Coil Voltage

NLK11 12, 15, 20, G- G B-Brass P-PTFE S21H 1-AC220V 2-DC24V

NLK12 25 N- NPT S-SS304/316 3-AC110V 4-DC12V

5-AC24V 6-DC48V

NLK11 Stainless Steel 16BAR Solenoid Valve 1 Inch Pilot Diaphragm Low Consumption for Water Pipe

Example : NLK11 25NSV S11H2: normal closed, 25mm orifice, NPT1", SS316 body, PTFE seals, DC24V.

2. Solenoid Valve Specification

Medium: Steam, hot water, ammonia, air, etc. Temperature: PTFE seal:-30℃~392℃(14℉~176℉)

Orifice: 12, 15, 20, 25(mm)

Pressure: NLK11:0.03MPA~1.6MPA (4.35PSI~232PSI) Port thread: NPT, G Thread

Port size: 1/4”, 3/8”, 1/2”, 1"

Voltage: DC:6V,12V, 24V, 36V, Coils: S21H,24VA(AC),18W(DC),IP65,100%ED

AC:24V, 110V, 120V, 220V, 240V

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot diaphragm structure,

Seal- VITION, NBR, EPDM, PTFE 2. Low consumption

Armature- SS304 3. special for longterm continuous working

Plunger- SS430F 4. 1 million operation lifespan

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

3. Detailed Information

NLK11 Stainless Steel 16BAR Solenoid Valve 1 Inch Pilot Diaphragm Low Consumption for Water Pipe

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLK1112XXX 3/8" 12 4.5 0.03Mpa 1.6Mpa 1.6Mpa

Brass

NBR

EPDM

Viton

(FKM)

 S21H
NLK1115XXX 1/2" 15 4.5 0.03Mpa 1.6Mpa 1.6Mpa S21H
NLK1120XXX 3/4" 20 9.3 0.03Mpa 1.6Mpa 1.6Mpa S21H
NLK1125XXX 1" 25 12 0.03Mpa 1.6Mpa 1.6Mpa S21H

4. Diemsion

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation

6. More Product Photo and Certifications

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation

Brass Compact Solenoid Valve , BSPP Thread Normally Open Solenoid Valve Irrigation

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
