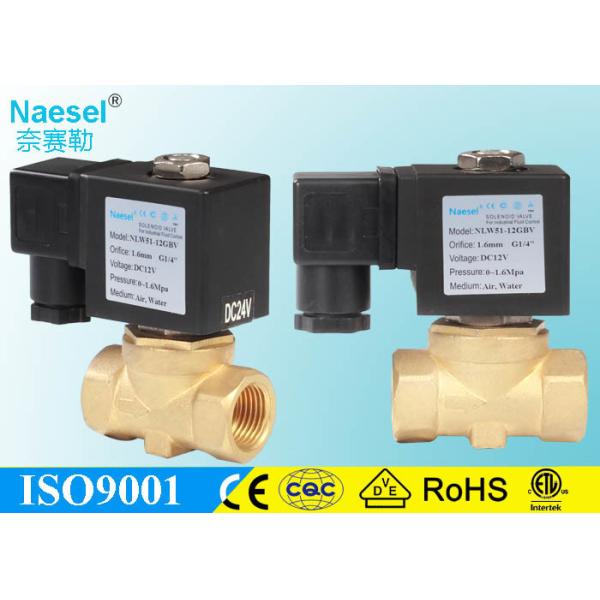

Normal opened solenoid control valve fast respond solenoid valve for air compressor

Normal opened solenoid control valve fast respond solenoid valve for air compressor

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLHN52 16-1.6 35-3.5 1-1/8" G- G B-Brass N-NBR S91B 1-AC220V 2.DC24V

20-2.0 40-4.0 2-1/4" N- NPT E-EPDM 3-AC110V 4.DC12V

25-2.5 50-5.0 V-FRM/Viton 5-AC24V 6-DC36V

30-3.0

NLHN52 normally open with S91B coil,

Example : NLHN52 25 1 GBV S91B1: NLHN52 Series, Normally open, 2.5mm orifice, G1/8", brass body, FKM seals, coil S91B, AC220V.

2. Solenoid Valve Specification

Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice: 1.6, 2.0, 2.5, 3.0, 3.5, 4.0(mm) EPDM seal:-30℃~120℃(-22℉~248℉)

Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NLHN52:0.0MPA~1.6MPA (0.0PSI~232PSI) Port thread: NPT, G Thread

Port size: 1/8”, 1/4”NPT G thread

Voltage: DC:12V, 24V, 36V, Coils: S91B,22VA(AC),17W(DC),IP65,100%ED

AC:24V, 110V, 120V, 220V, 240V

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Compact design to save the space.

Seal- VITION, NBR, EPDM, PTFE 2. Direct acting, 0 bar generated.

Armature- SS304 3. Used for air compressor

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

3. Detailed Information

4. Diemsion

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.
