Pilot Piston high pressure solenoid valve for plastic injection machine

Pilot Piston high pressure solenoid valve for plastic injection machine

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLS41 9.0(mm) 2-1/4" G- G B-Brass P-PTFE GE11B 1-AC220V 2.DC24V

3-3/8" N- NPT S-SS304/316 V-Viton S91B 3-AC110V 4.DC12V

4-1/2" 5-AC24V

NLS41,Pilot Piston acted high pressure solenoid valve 0-100 bar

Example : NLS41 10 2 GST S91B1: NLS41 type, normal closed, 9.0mm orifice, G1/4", Stainless steel body, PTFE seals.

2. Solenoid Valve Specification

Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice: 1.0, 1.6(mm) PET seal:-40℃~150℃(-40℉~302℉)

Pressure: NLS41:0.00MPA~12MPA (0.0PSI~1740PSI) Port size: 1/4”, 3/8”, 1/2”

Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, Coils: GE11B,5.5VA(AC),3W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S91B, 22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston strcuture

Seal- PEEK PTFE 2. Suitable for air compressor

Armature- SS304 3. PTFE/Viton Seal

Plunger- SS430F 4. Low consumption coil(4.5W DC)

Stop- SS430F

Spring- SS304

Shading Rings- Copper

3. Detailed Information

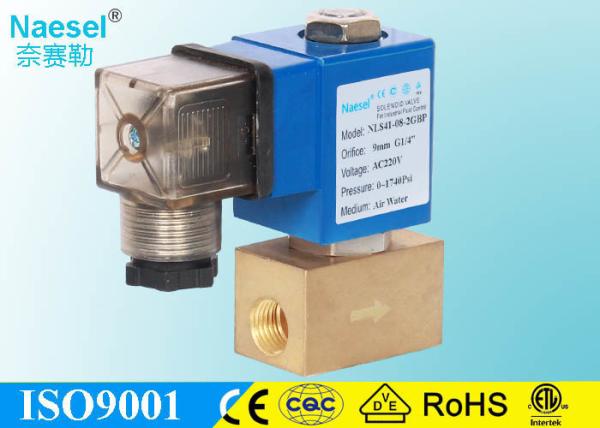

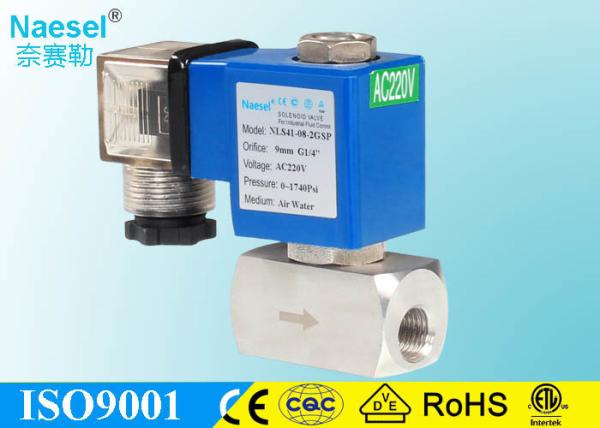

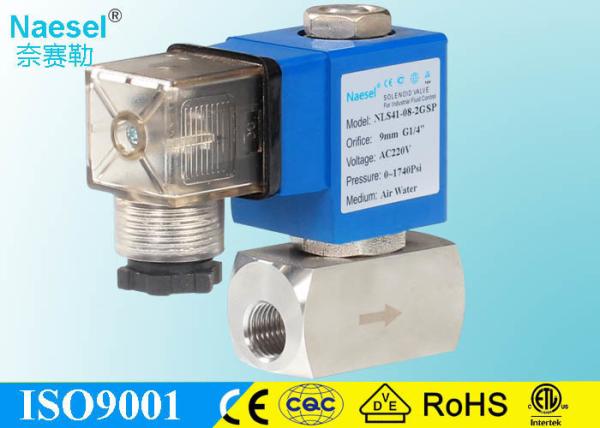

NLS41 normally closed high pressure solenoid valve with GE11B energy saving coil,

4. Diemsion

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.
