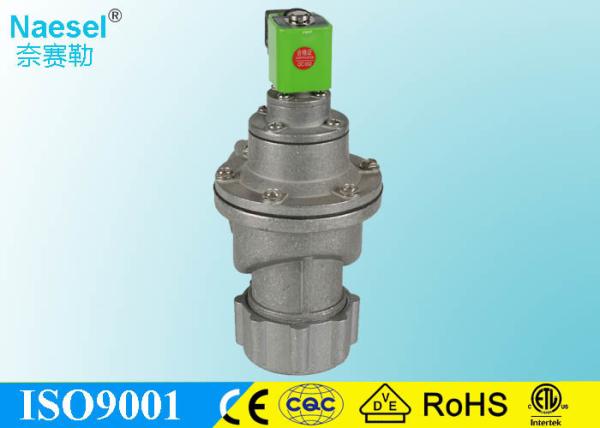

Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve
Specifications
Brand Name :
NAESEL
Model Number :
NLG11-25/40/50/62/76Y
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T, L/C, Paypal, MoneyGram, Western Union,
Supply Ability :
10000PCS Per Month
Delivery Time :
2-7 days
Packaging Details :
Solid paper cartons, with box with your logo or QR code
Structure :
Diaphragm stucture
Material :
low cost with Aluminum body
Character :
low consumption with special seal
Medium :
Water
Temperature :
-5℃~55℃（23~131℉）
Pressure :
0.3~0.8Mpa (44~115Psi)
Connect ends :
1", 1-1/2", 2", 2-1/2", 76mm
Port Thread :
G thread
Orifice :
25, 40, 50, 62,76 (mm)
Voltage :
AC220V, DC24V.
Seal :
NBR
Application :
Most widely used duct collect system
Description

120VAC Aluminum Dust Collector Solenoid Valve Normally Closed 3/4" Pipe Size

120VAC Aluminum Dust Collector Solenoid Valve Normally Closed 3/4" Pipe Size

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLG11 25 1" G- G A-Aluminum N-NBR S044 1-AC220V 2.DC24V

40 1-1/2" N-NPT S051 3-AC110V 4.DC12V

50 2" Y-Submerged 5-AC24V

62 2-1/2"

76 76mm

NLG11, 120VAC Aluminum Dust Collector Solenoid Valve Normally Closed

Example : NLT11 25 GAN S0511: NLT11 Series, 25mm orifice, G1", Aluminum body, NBR seals, AC220V.

2. Solenoid Valve Specification

Medium: water Temperature: NBR seal:-5℃~55℃(23℉~131℉)

Orifice: 25, 40, 50, 62, 76(mm)

Pressure: 0.0MPA~1.0MPA (0.0PSI~145PSI) Port size: 1", 1-1/2”, 2”, 2-1/2", 76mm

Port thread: G Thread

Voltage: DC:12VDC, 24VDC, 8W Coils: S044,20VA(AC),20W(DC),IP65,100%ED

AC:24VAC, 110VAC, 220VAC S051,18VA(AC),24W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Nylon Character: 1. Diaphragm Stucture With Aluminum Valve Body

Seal- NBR 2. Low Consumption

Armature- SS304 3. All seal coil with special rubber

Plunger- SS430F 4. Low cost for Aluminum body

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

3. Detailed Information

Model Port Orifice Port Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLG11-25XXX 1" 25 G 0.3Mpa 0.8Mpa 0.8Mpa

Aluminum

NBR

S044

S051
NLG11-40XXX 1-1/2" 40 G 0.3Mpa 0.8Mpa 0.8Mpa
NLG11-50XXX 2" 50 G 0.3Mpa 0.8Mpa 0.8Mpa
NLG11-62XXX 2-1/2" 62 G 0.3Mpa 0.8Mpa 0.8Mpa
NLG11-76XXX 76mm 76 Submerged 0.3Mpa 0.8Mpa 0.8Mpa

4. Diemsion

Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve

Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve

6. More Product Photo and Certifications

Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve

Ac 120v Solenoid Valve , Aluminum Dust Collector Diaphragm Solenoid Valve

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
