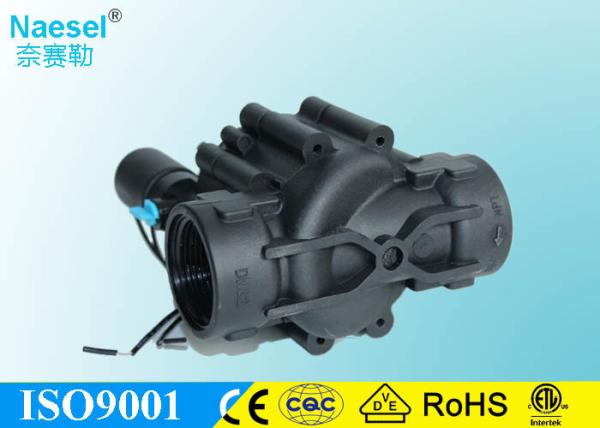

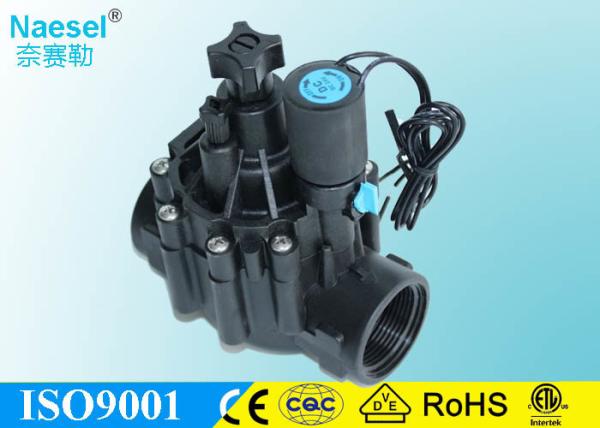

Remote control rain irrigation solenoid valve 4 inch for lawn stadium agricultural

Remote control rain irrigation solenoid valve 4 inch for lawn stadium agricultural

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLZ11 20-20 25-25 1-3/4" G- G B-Brass N-NBR S21B 1-AC220V 2.DC24V

NLZ21 32-32 40-40 2-1/4" S-SS304,SS316 E-EPDM S91B 3-AC110V 4.DC12V

50-50 80-80 3-3/8" V-FRM/Viton L11B 5-AC24V 6-DC6V

4-1/2" SA11B 7-DC36V

NASS0543

NLZ11 flow adjuatable Remote control rain irrigation solenoid valve 4 inch for lawn stadium agricultural with SE02B coil,

NLZ21 unadjustable Remote control rain irrigation solenoid valve 4 inch for lawn stadium agricultural with L32B coil,

Example : NLZ11 80 1 GBN S91B1: NLZ11 Series, 80mm orifice, G3", nylon body, NBR seals, AC220V.

2. Solenoid Valve Specification

Medium: water Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice: 20, 25, 32, 40, 50, 80(mm)

Pressure: 0.0MPA~1.0MPA (0.0PSI~145PSI) Port size: 3/4”, 1", 1-1/2”, 2”, 3”

Port thread: G Thread

Voltage: DC:12VDC, 24VDC, 8W Coils: SE02B,22VA(AC),17W(DC),IP65,100%ED

AC:24VAC, 110VAC, 220VAC L32B,22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Nylon Character: 1. Pilot diaphragm structure with high strenth Nylon

Seal- NBR 2. 2 filteration to prevent solenoid stack

Armature- SS304 3. Isolation water proof coil

Plunger- SS430F 4. Slow closing to prevent water hammer damage

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

3. Detailed Information

4. Diemsion

Solenoid Mounting and testing

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

6. More Product Photo and Certifications

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
