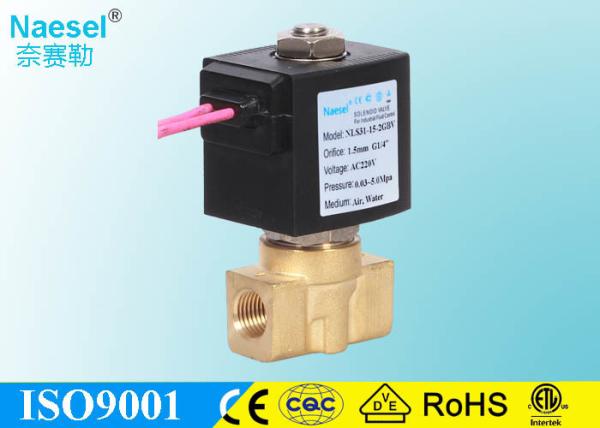

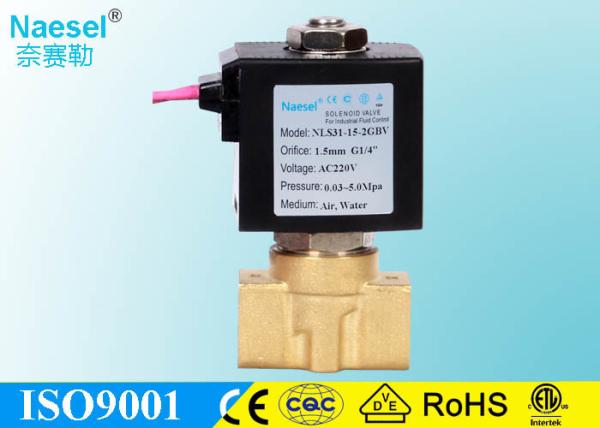

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed
Specifications
Brand Name :
Naesel
Model Number :
NLS31
Certification :
CE CQC TUV ROHS VDE Intertek ETL
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability :
10000PCS Per Month
Delivery Time :
3-7 days
Packaging Details :
carton with solid inner box as below photo
Material :
brass, stainless steel 304,430, FKM,
Temperature :
-30℃~150℃（-22℉~302℉）
Port :
1/8", 1/4", 3/8" (NPT G thread)
Thread :
NPT, G, BSPP Thread
Orifice :
1.0, 1.6(mm)
Voltage :
DC:,12V, 24V, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ
Seal Material :
FKM PTFE
Fluid :
hot water, steam, oil, etc.
Pressure :
0.0MPA~1.6MPA (0.0PSI~232PSI)
Charactoristics :
Direct acting type
Motion Type :
Direct acting
Valve Type :
Normally Closed or Normally opened
Feature :
Low consumption coil
Guarantee :
15 month
Description

high pressure solenoid valve 3000 psi 20bar 20mpa conformed with ODE solenoid valvehigh pressure solenoid valve 3000 psi 20bar 20mpa conformed with ODE solenoid valv20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLS31 10-1.0, 15-1.5 1-1/8" G- G B-Brass P-PTFE GE11B 1-AC220V 2.DC24V

20-2.0, 25-2.5 2-1/4" N- NPT S-SS304/316 T-PEEK 3-AC110V 4.DC12V

30-3.0, 40-4.0 3-3/8" 5-AC24V

50-5.0, 60-6.0

NLS31, direct acting high pressure solenoid valve 0-200 bar

Example : NLS31 10 1 GBT S91B1: NLS31 type, normal closed 1.0mm orifice, G1/8", brass body, PET seals.

2. Solenoid Valve Specification

Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice: 1.0, 1.6(mm) PET seal:-40℃~150℃(-40℉~302℉)

Pressure: NLS31:0.00MPA~1.6MPA (0.0PSI~232PSI) Port size: 1/8”, 1/4”, 3/8”

Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, Coils: GE11B,5.5VA(AC),3W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S11B,22VA(AC),15W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. direct acting strcuture

Seal- PEEK PTFE 2. long lifespan seals for high temperature

Armature- SS304 3. Suitable for long term pipe line system

Plunger- SS430F 4. Low consumption coil(3W DC)

Stop- SS430F

Spring- SS304

Shading Rings- Copper

3. Detailed Information

NLS31 normally closed high pressure solenoid valve with GE11B energy saving coil,

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(15W)
NLS31101XXX 1/8"/1/4" 1.0 0.05 0.01Mpa 10.0Mpa 10.0Mpa

Brass

SS304

SS316

PET

Viton

PU

 S91B
NLS31161XXX 1/8"/1/4" 1.6 0.08 0.01Mpa 20.0Mpa 20.0Mpa GE11B

4. Diemsion

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

6. More Product Photo and Certifications

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

20 Bar 20mpa High Pressure Solenoid Valve 3000 Psi High Pressure ODE Listed

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.
