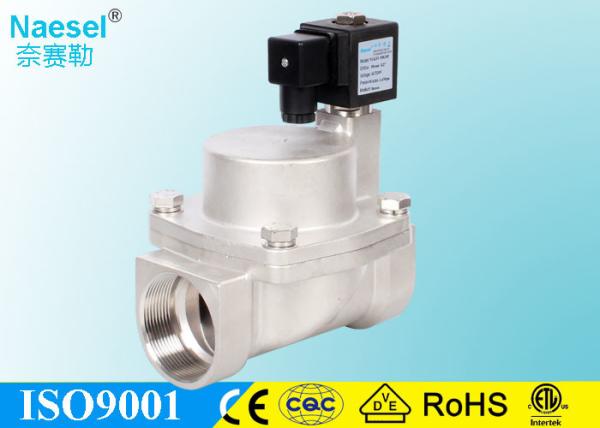

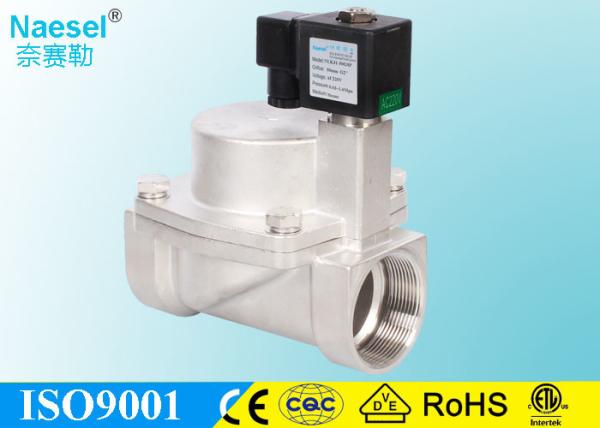

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
Specifications
Brand Name :
Naesel
Model Number :
NLK31/32
Certification :
CE CQC TUV ROHS VDE Intertek ETL
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability :
10000PCS Per Month
Delivery Time :
3-7 days
Packaging Details :
carton with solid inner box as below photo
Material :
brass, stainless steel 304,430, FKM,
Temperature :
-30℃~150℃（-22℉~302℉）
Port :
3/8”, 1/2”,3/4”,1", 1-1/4", 1-1/2", 2"
Thread :
NPT, G, BSPP Thread
Orifice :
12, 15, 20, 25, 32, 40, 50, 65, 80, 100,125, 150(mm)
Voltage :
DC:,12VDC, 24VDC, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ
Seal Material :
FKM PTFE
Fluid :
hot water, steam, oil, etc.
Pressure :
0.0MPA~1.6MPA (0.0PSI~232PSI)
Charactoristics :
pilot piston type, low consumption
Motion Type :
pilot piston
Valve Type :
Normally Closed or Normally opened
Description

large flow 2 port 5 inch steam solenoid valve Pilot piston type 16 bar 230 psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLK31 12, 15, 20 3/8"-F5" G- G B-Brass P-PTFE S21H 1-AC220V 2.DC24V

NLK32 25, 32, 40, N- NPT S-SS304/316 V-FRM/Viton YG1B 3-AC110V 4.DC12V

50, 65, 80, F- Flange 5-AC24V

100, 125,

150

NLK31 normally closed steam hot oil solenoid valve with S21H coil,

NLK32 normally open steam hot oil solenoid valve with S21H coil,

Example : NLK31 32 1 GBP S91B1: NLK31 type, normal closed 32mm orifice, G1-1/4", brass body, PTFE seals.

2. Solenoid Valve Specification

Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice: 12, 15, 20, 25, 32,40,50, PTFE seal:-60℃~200℃(-76℉~392℉)

65, 80, 100, 125,150(mm)

Pressure: NLK31:0.05MPA~1.6MPA (7.5PSI~232PSI) Port size: 3/8”, 1/2”, 3/4”, 1” , 1-1/4", 1-1/2",2"

NLK32:0.05MPA~1.6MPA (7.5PSI~232PSI) F2-1/2", F3", F3-1/2", F4", F5"

NLK31F:0.05MPA~1.6MPA (7.5PSI~232PSI) Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, Coils: S21H,22VA(AC),18W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC YG1B,30VA(AC),21W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston low consumption for steam

Seal- VITION, NBR, EPDM, PTFE 2. Seals suitable for steam

Armature- SS304 3. Suitable for long term pipe line system

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

3. Detailed Information

NLK31 normally closed steam hot oil solenoid valve with S21H coil,

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLK3112XXX 3/8" 12 4.5 0.05Mpa 1.6Mpa 1.6Mpa

Brass

SS304

SS316

PTFE

Viton

(FKM)

 S21H
NLK3115XXX 1/2" 15 4.5 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3120XXX 3/4" 20 9.3 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3125XXX 1" 25 12 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3132XXX 1-1/4" 32 24 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3140XXX 1-1/2" 40 29 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3150XXX 2" 50 48 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3125XXX F1" 25 12 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3132XXX F1-1/4" 32 24 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3140XXX F1-1/2" 40 29 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3150XXX F2" 50 48 0.05Mpa 1.6Mpa 1.6Mpa S21H

NLK32 normally open steam hot oil solenoid valve with S21H coil,

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLK3212XXX 3/8" 12 4.5 0.05Mpa 1.6Mpa 1.6Mpa

Brass

SS304

SS316

PTFE

Viton

(FKM)

 S21H
NLK3215XXX 1/2" 15 4.5 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3220XXX 3/4" 20 9.3 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3225XXX 1" 25 12 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3232XXX 1-1/4" 32 24 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3240XXX 1-1/2" 40 29 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3250XXX 2" 50 48 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3225XXX F1" 25 12 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3232XXX F1-1/4" 32 24 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3240XXX F1-1/2" 40 29 0.05Mpa 1.6Mpa 1.6Mpa S21H
NLK3250XXX F2" 50 48 0.05Mpa 1.6Mpa 1.6Mpa S21H

NLK31-F normally closed steam hot oil solenoid valve with S21H coil,

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLK3165FXXX F2-1/2" 65 85 0.05Mpa 1.6Mpa 1.6Mpa

Brass

SS304

SS316

PTFE

Viton

(FKM)

 YG1B
NLK3180FXXX F3" 80 125 0.05Mpa 1.6Mpa 1.6Mpa YG1B
NLK3100FXXX F4" 100 160 0.05Mpa 1.6Mpa 1.6Mpa YG1B
NLK31125FXXX F5" 125 200 0.05Mpa 1.6Mpa 1.6Mpa YG1B
NLK31150FXXX F6" 150 320 0.05Mpa 1.6Mpa 1.6Mpa YG1B

4. Diemsion

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

6. More Product Photo and Certifications

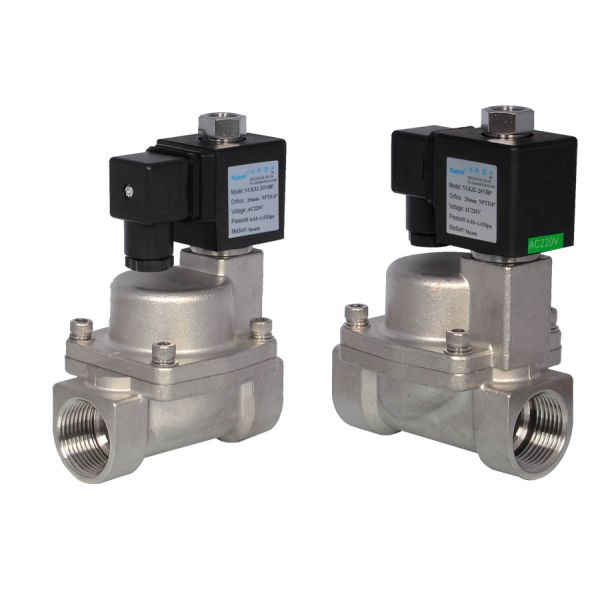

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

Large Flow 2 Port 5 Inch Steam Solenoid Control Valve Pilot Piston Type 16 Bar 230 Psi
