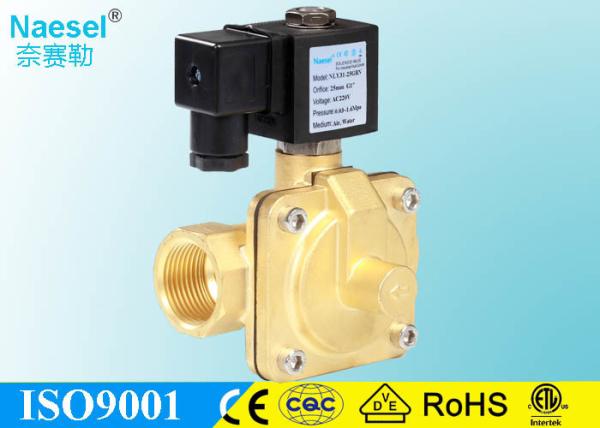

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton
Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton
Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton
Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton
Specifications
Brand Name :
Naesel
Model Number :
NLW31/41/32/42
Certification :
CE CQC TUV ROHS VDE Intertek ETL
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability :
10000PCS Per Month
Delivery Time :
1-3 days
Packaging Details :
carton with solid inner box as below photo
Material :
brass, stainless steel 304,430, FKM,
Temperature :
-30℃~150℃（-22℉~302℉）
Port :
3/8", 1/2", 3/4", 1"
Thread :
NPT, G, BSPP Thread
Orifice :
12, 15, 20, 25(mm)
Voltage :
DC:,12V 24V, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ
Seal Material :
FKM EPDM NBR
Fluid :
Air, water,oil, etc.
Pressure :
0.01MPA~1.0MPA (1.45PSI~145PSI)
Charactoristics :
started at 0.1 bar with low power consumption
Motion Type :
Pilot diaphragm
Valve Type :
Normally Closed
Connection type :
Thread or Flange
Operation capability :
1 million times
Description

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC VitonAnti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

1. How To Order

Model Orifice Thread Body Seal Coil Voltage

NLY31 12, 15, 20, G- G B-Brass N-NBR SA11B 1-AC220V 2-DC24V

NLY41 25 N- NPT S-SS304/316 E-EPDM S91B 3-AC110V 4-DC12V

NLY32 V-FRM/Viton 0543 5-AC24V

NLY42

NLY31 Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton, 0.3~16bar

NLY32 Pilot diaphragm solenoid valve normal opened, 0.3~16bar

NLY41 Pilot diaphragm solenoid valve normal closed, 0.3~10bar

NLY42 Pilot diaphragm solenoid valve normal opened, 0.3~10bar

Example : NLY31 25GBV S91B1: normal closed, 25mm orifice, G1", brass body, Viton seals, AC220V.

2.Solenoid Valve Specification

Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice: 12, 15, 20, 25(mm) EPDM seal:-30℃~120℃(-22℉~248℉)

Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NLY31:0.01MPA~1.6MPA (1.45PSI~232PSI) Port thread: NPT, G Thread

Port size: 1/4”, 3/8”, 1/2”, 1"

Voltage: DC:6V,12V, 24V, 36V, Coils: SA11B,9VA(AC),6W(DC),IP65,100%ED

AC:24V, 110V, 120V, 220V, 240V S91B,22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot diaphragm structure,

Seal- VITION, NBR, EPDM, PTFE 2. Low consumption

Armature- SS304 3. longterm continuous working

Plunger- SS430F 4. 1 million operation lifespan

Stop- SS430F

Spring- SS304

Shading Rings- Copper

Special Coils: Latching coil DC6~24V

3.Detailed Information

NLY31 Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton, 0.3~16bar

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLY3112XXX 3/8" 12 4.5 0.03Mpa 1.6Mpa 1.6Mpa

Brass

NBR

EPDM

Viton

(FKM)

 S91B
NLY3115XXX 1/2" 15 4.5 0.03Mpa 1.6Mpa 1.6Mpa S91B
NLY3120XXX 3/4" 20 9.3 0.03Mpa 1.6Mpa 1.6Mpa S91B
NLY3125XXX 1" 25 12 0.03Mpa 1.6Mpa 1.6Mpa S91B

NLY32 Pilot diaphragm solenoid valve normal opened, 0.3~16bar

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
NLY3112XXX 3/8" 12 4.5 0.03Mpa 1.6Mpa 1.6Mpa Brass

NBR

EPDM

Viton

(FKM)

 S91B
NLY3115XXX 1/2" 15 4.5 0.03Mpa 1.6Mpa 1.6Mpa S91B
NLY3120XXX 3/4" 20 9.3 0.03Mpa 1.6Mpa 1.6Mpa S91B
NLY3125XXX 1" 25 12 0.03Mpa 1.6Mpa 1.6Mpa S91B

NLY41 Pilot diaphragm solenoid valve normal closed, 0.3~10bar

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(9VA) DC(6W)
NLY4112XXX 3/8" 12 4.5 0.03Mpa 1.0Mpa 1.0Mpa Brass

NBR

EPDM

Viton

(FKM)

 SA11B
NLY4115XXX 1/2" 15 4.5 0.03Mpa 1.0Mpa 1.0Mpa SA11B
NLY4120XXX 3/4" 20 9.3 0.03Mpa 1.0Mpa 1.0Mpa SA11B
NLY4125XXX 1" 25 12 0.03Mpa 1.0Mpa 1.0Mpa SA11B

NLY42 Pilot diaphragm solenoid valve normal opened, 0.3~10bar

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(9VA) DC(6W)
NLY4212XXX 3/8" 12 4.5 0.03Mpa 1.0Mpa 1.0Mpa Brass

NBR

EPDM

Viton

(FKM)

 SA11B
NLY4215XXX 1/2" 15 4.5 0.03Mpa 1.0Mpa 1.0Mpa SA11B
NLY4220XXX 3/4" 20 9.3 0.03Mpa 1.0Mpa 1.0Mpa SA11B
NLY4225XXX 1" 25 12 0.03Mpa 1.0Mpa 1.0Mpa SA11B

4.Diemsion

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

6. More Product Photo and Certifications

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton
