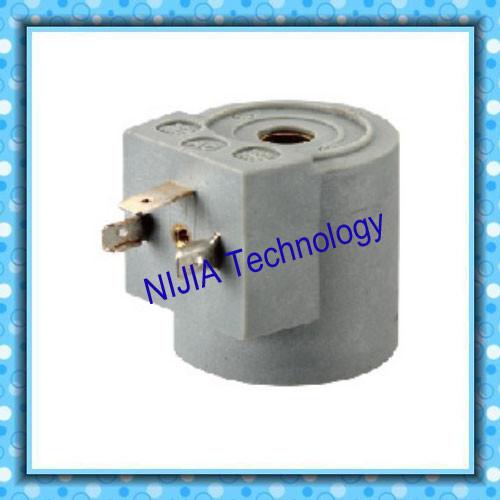

GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A
GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A
GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A
GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A
GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A
GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A
Specifications
Brand Name :
NIJIA
Model Number :
K-300 K-301 K-305
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
K-300 K-301 K-305
Insulation Class :
F or H
Normal Voltage :
24-110-220-230VAC 12-24VDC
Connection Type :
DIN43650A
Voltage tolerance :
± 10%
Duty cycle: :
100%
Temperature range: :
–20°C ÷ +80°C
IP :
00/65
Description

GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A

GOYEN QR series Solenoid coil K-300 K-301 K-305 used in the remote or integral actuation of dust collector diaphrgam or pilot valves.

The system is designed for use with air . Thermoset material will help the coil more stable and safely.

Specifications:

Product NO. K-300 K-301 K-305
Product type Goyen QR series
Normal Voltage AC220V DC24V
Normal Power AC:13VA DC:9W
Insulation Class F , H
Connection Type DIN43650A
Applicability Mini Series solenoid valves


Installation:
Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top.
Ensure voltage supplied to solenoid is within -10% and +15% of the solenoid rated voltage.


Construction
Encapsulation: PA-6
C-frame: Mild steel zinc passivated
Bobbin: PA-6
Insulation class: B/130°C
Rating: Non-continuous use only
Clip: Mild steel (mechanically plated)

Note :

Voltage tolerance: ± 10%
Temperature range: –10°C ÷ +80°C
Duty cycle: 100%

Standard voltages: 24 - 110 - 230 VAC
12 - 24 VDC
Other voltages on request

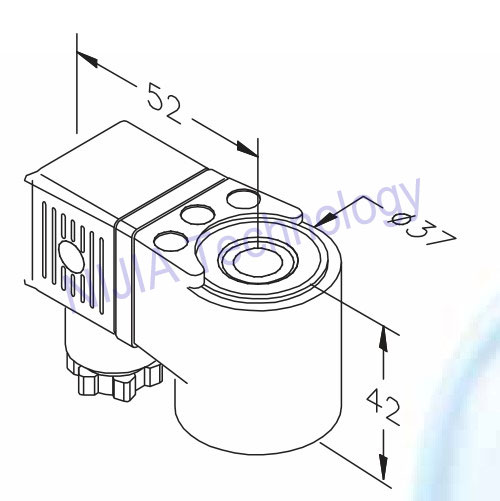

Drawings:

GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A

GOYEN QR series Solenoid Valve Coil K -300 K -301 K -305 DIN 43650A

Competitive Advantage:

1. Professional Service team , 24 hours online

2. High and stable quality

3. Quick delivery time

4. Good package in order to void the problems in transportation.

5. Best service from the whole company.
