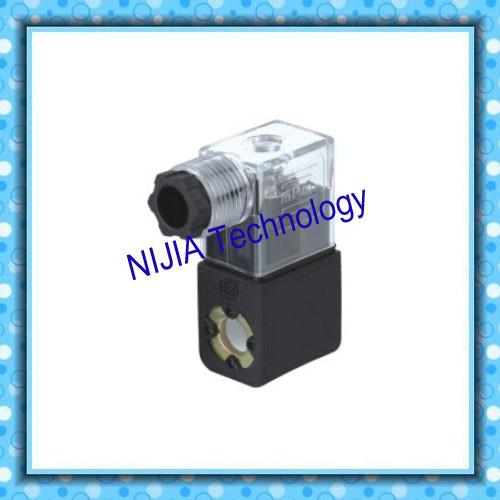

4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves
4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves
4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves
4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves
4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves
4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves
Specifications
Brand Name :
Amisco,NIJIA
Model Number :
EVI7/9 4V210 type
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
EVI7/9 4V210 type
Insulation Class :
F/H
Normal Voltage :
24-110-220-230VAC 12-24VDC
Connection Type :
DIN43650B
Voltage tolerance :
± 10%
Duty cycle: :
100%
Temperature range: :
–20°C ÷ +50°C
IP :
00/65
Description

DIN43650B Amisco Pneumatic Solenoid Coil for 5/2 Way , 3/2 Way Solenoid Valve


The EVI7 S9 system by AMISCO includes a wide range of solenoids, coils and operators, designed for pneumatic valves. All solenoids of this system have the guide tube with a diameterof 9 mm and the plunger with a diameter of 8 mm.
The system is designed for use with air.
This type EVI7/9 could be widely used to Airtac 4V110 4V210 4V410 and 4V440 series solenoid valves.

Specifications:

Product NO. NJ210
Product type 4V210
Normal Voltage AC220V DC24V
Normal Power AC : 4-8VA DC : 3-8W
Insulation Class F , H
Connection Type DIN43650B
Applicability 4VSeries solenoid valves

• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Class H wire 200°C according to IEC 60317-13
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 22 mm coil ).
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version

Drawings:

4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves

Operator:


Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.
The guide tube is made with brass ( stainless steel is possible upon special agreement ).
The plunger is normally equipped with NBR rubber seals.
Other sealing materials like FKM are available upon demand.
The armature assembly is designed for more than 50x106 cycles.

4V210 DIN43650B 5/2 Way Solenoid Valve Coil for Pneumatic Valves

Competitive Advantage:

1. Professional workshops

2. High and stable quality

3. Quick delivery time

4. Good package in order to void the problems in transportation.

5. Best service from the whole company.
