HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A
HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A
HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A
HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A
HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A
HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A
Specifications
Brand Name :
NIJIA
Model Number :
HB700
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
HB700
Insulation Class :
F or H
Normal Voltage :
24-110-220-230VAC 12-24VDC
Connection Type :
DIN43650A
Voltage tolerance :
± 10%
Duty cycle: :
100%
Temperature range: :
–20°C ÷ +80°C
IP :
00/65
Description

HB700 Mini type Solenoid valves coil 39mm Φ29 AC220V AC110V DC24V DC12V DIN43650A

HB700 Mini type Solenoid valves coil by Nijia includes a wide range of solenoid operators designed for pneumatic valves . All solenoids of this system have the guide tube with a diameter of 29mm.

The system is designed for use with air . Thermoset material will help the coil more stable and safely.

Specifications:

Product NO. NJ088
Product type HB700
Normal Voltage AC220V DC24V
Normal Power AC:13VA DC:9W
Insulation Class F , H
Connection Type DIN43650A
Applicability Mini Series solenoid valves

• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Class H wire 200°C according to IEC 317-13
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 39 mm coil ).
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version.

Characteristics DC AC (50 Hz) AC (60 Hz)
Rated power DC W 5.5 　 　
Inrush power AC VA 　 10 8.5
Rated power AC VA 　 6.5 5.5
Coil temperature rise °C 60 65 57
Copper temperature rise °C 76 80 67

Note :

Voltage tolerance: ± 10%
Temperature range: –10°C ÷ +80°C
Duty cycle: 100%

Standard voltages: 24 - 110 - 230 VAC
12 - 24 VDC
Other voltages on request

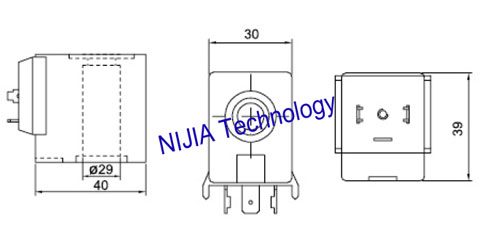

Drawings:

HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A

Application :

The coil is fastened to the plunger guide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit .
The plungerguide tube is fixed to the valve body by means of a M12 x 0.5 thread .
The suggested interface dimensions of the valve body are shown on the right side .
Any change to the prescribed dimensions can effect the performances of the solenoid operator .

HB700 Mini Valve Solenoid Coil , AC220V 24VDC Solenoid Coil DIN43650A

Competitive Advantage:

1. Professional Service team , 24 hours online

2. High and stable quality

3. Quick delivery time

4. Good package in order to void the problems in transportation.

5. Best service from the whole company.
