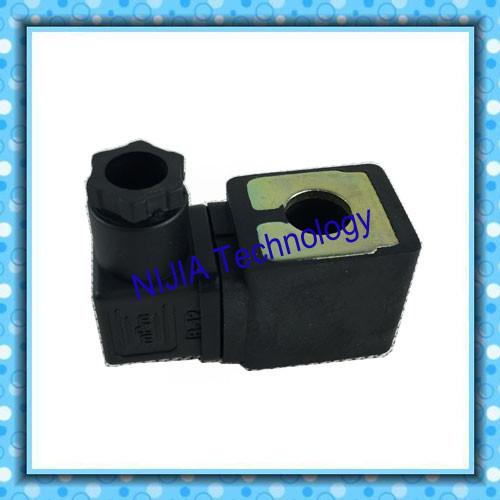

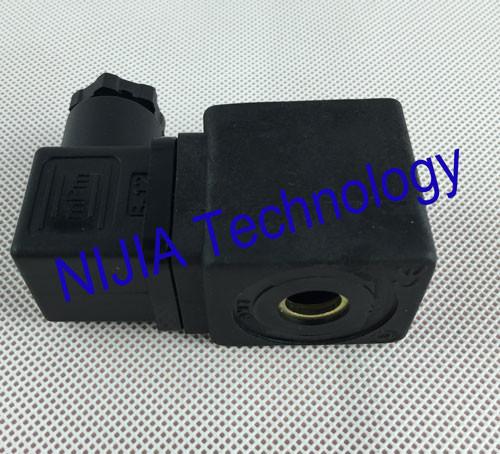

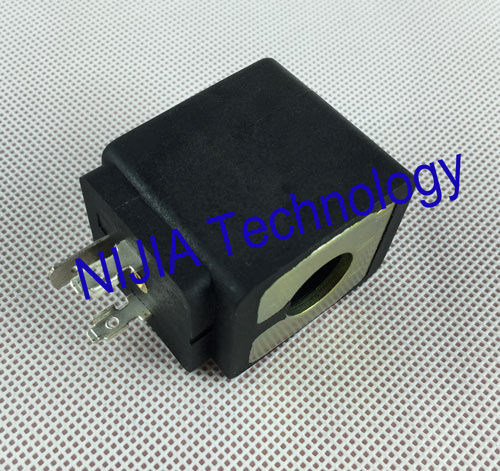

Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W
Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W
Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W
Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W
Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W
Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W
Specifications
Brand Name :
Parker
Model Number :
491514Q3 D400Q3
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
491514Q3 D400Q3
Insulation Class :
H
Normal Voltage :
24-110-220-230VAC 12-24VDC
Connection Type :
DIN43650A
Voltage tolerance :
± 10%
Duty cycle: :
100%
Temperature range: :
–20°C ÷ +50°C
IP :
00/65
Description

Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W

The Parker 491514Q3 D400Q3 solenoid coil is used to parker series solenoid valves, which insert diameter 9.5mm,

Specifications:

• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Class H wire 200°C according to IEC 317-13
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 22 mm coil ).
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version.

Characteristics DC AC (50 Hz) AC (60 Hz)
Rated power DC W 5.5 　 　
Inrush power AC VA 　 10 8.5
Rated power AC VA 　 6.5 5.5
Coil temperature rise °C 60 65 57
Copper temperature rise °C 76 80 67

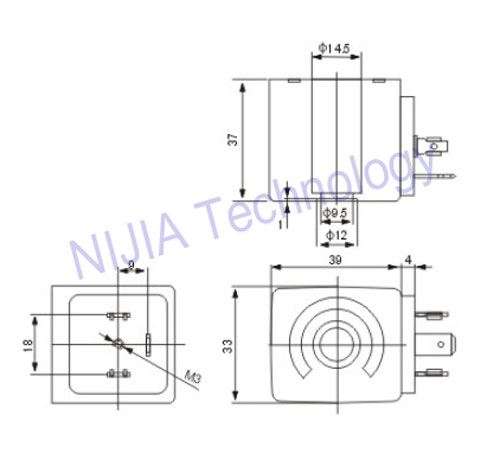

Drawings:

Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W

Operator :

Parker 491514Q3 D400Q3 solenoid coil insert diameter 9.5mm high 37mm AC220V 110V DC12V 12W

Note:

Voltage tolerance: ± 10%
Temperature range: –10°C ÷ +50°C
Duty cycle: 100%

Competitive Advantage:

1. Professional workshops

2. High and stable quality

3. Quick delivery time

4. Good package in order to void the problems in transportation.

5. Best service from the whole company.
