Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Specifications
Brand Name :
NIJIA
Model Number :
NJT205
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
NJT205
Inner hole :
Φ 13.8 × 44.6mm
Standard power consumption :
17W or customized
Coil insulation :
F or H
Connection type :
Insert 6.3*0.8mm
Material :
Polyamide 66
Standard operating voltages: :
12-24 VDC Other voltages on request.
Operating temperature range: :
-40°C ÷ +120°C
Description

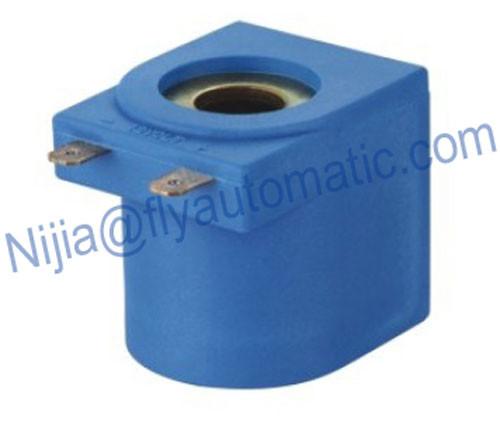

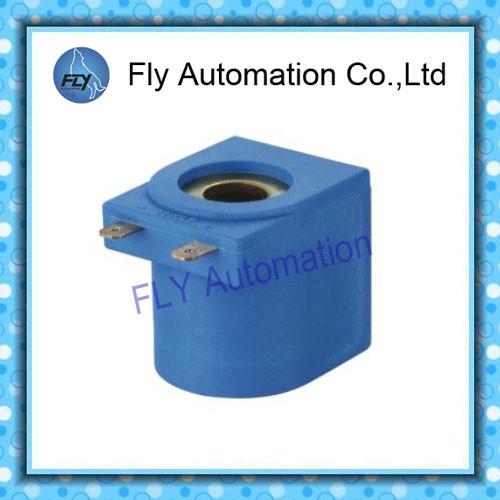

Lovato single point pressure reducer LPG CNG LNG Automotive Valve Φ 13.8 × 44.6mm insert type

The Automotive valve coil NJT205 suitable for Lovato single point pressure reducer.

It can be supplied with different power consumptions , according to specific requirements.

Other special voltage and power could be customized.

The NJT205 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG CNGand

LNG system.

The NJT205 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.

Specifications:

1. Normal voltage :24VDC 12VDC

2. Normal power : 17W 18W 20W (other voltage and power can be customized)

3. Color : Bule,(can be customized)

4. Inner Hole : Φ 13.8 × 44.6mm

5. Protect class:IP65

6. Material : Polyamide 66

7. Insulation class : H

8. Connection Type : 6.3 * 0.8mm

9. Used to Lovato pressure reducer
10. Heavy duty long service life

Drawings:

Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive

Applications

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40

Competitive Advantage:

1. Best service from the whole company.

2. Professional factory

3. High and stable quality

4. Quick delivery time

5. Good package,Standard export packing
