DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer
Specifications
Brand Name :
NIJIA
Model Number :
NJT206
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
NJT206
Inner hole :
Φ 14.1 × 42.9mm
Standard power consumption :
20W or customized
Coil insulation :
F or H
Connection type :
Insert 6.3*0.8mm
Material :
Polyamide 66
Standard operating voltages: :
12-48 VDC Other voltages on request.
Operating temperature range: :
-40°C ÷ +120°C
Description

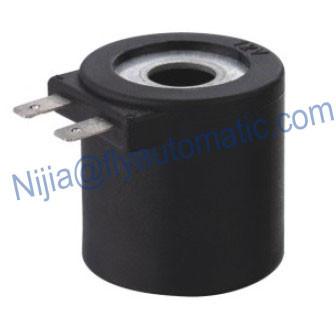

DC 20W CNG LPG Automotive Valve Φ 14.1 × 42.9mm insert type for high pressure reducer

The Automotive valve coil NJT206 suitable for high pressure reducer.

It can be supplied with different power consumptions , according to specific requirements.

Other special voltage and power could be customized.

The NJT206 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG CNGand

LNG system.

The NJT206 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.

Specifications:

1. Normal voltage :24VDC 12VDC

2. Normal power : 17W 18W 20W (other voltage and power can be customized)

3. Color : Bule,(can be customized)

4. Inner Hole : Φ 14.1 × 42.9mm

5. Protect class:IP65

6. Material : Polyamide 66

7. Insulation class : H

8. Connection Type : 6.3 * 0.8mm

9. Used to Lovato pressure reducer
10. Heavy duty long service life

Drawings:

DC 20W CNG LPG Automotive Valve Insert For High Pressure Reducer

Applications

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40

Competitive Advantage:

1. Best service from the whole company.

2. Professional factory

3. High and stable quality

4. Quick delivery time

5. Good package,Standard export packing
