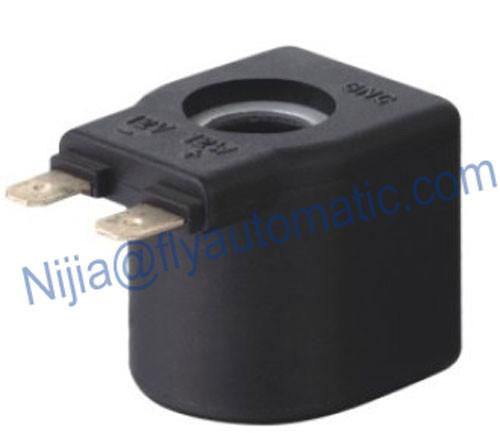

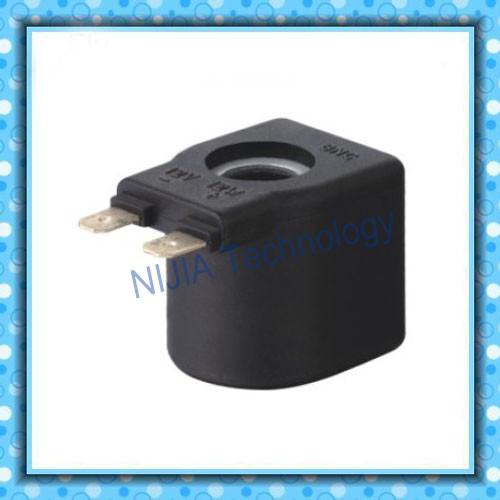

Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm
Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm
Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm
Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm
Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm
Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm
Specifications
Brand Name :
NIJIA
Model Number :
NJT210
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Color :
black,or customized
Inner hole :
Φ 12.1 × 33.1mm
Standard power consumption :
12W
Coil insulation :
H
Connection type :
16 × 0.8mm
Material :
Thermoplastic
Standard operating voltages: :
12-24 VDC Other voltages on request.
Operating temperature range: :
-40°C ÷ +120°C
Description

Tesmon reducer pressure car valve coil Φ 12.1 × 33.1mm DC12V 12W Compression Release Valve Coil

The NJT210 coils are designed thermoplastic composite material or flame retardant temperature resistant

resin,widely used in compression release valve etc.

The NJT210 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.

Tesmon copression release valve coil NJT210 suitable for automotive valve system.

Φ 12.1 × 33.1mm DC12V 12W ,Other special voltage and power could be customized

It can be supplied with different power consumptions according to specific requirements.

Specifications:

item relieve valve coil
product code NJT210
specification Φ 16x 0.8mm
applied of voltage DC12V
resistant breakdown voltage ≥1800V 1MA/min
voltage range ±10%
insulation class H grade
protection grade IP65
ED 100%
temperature resistant range B. H
coated materials Thermoplastic composite material or flame retardant temperature resistant resin
advantages high temperature resistant, excellent moistureproof property
applications widely used in compression release valve etc.

Drawings:

Tesmon Reducer Pressure Automotive Solenoid Car Valve Coil Φ 12.1 × 33.1mm

Competitive Advantage:

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40

Attention:

1, Before you endorse the parcel , please do open the package , and check out whether the items are damaged during the shipping process . If so , please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this

2, Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions, please feel free to contact us.
