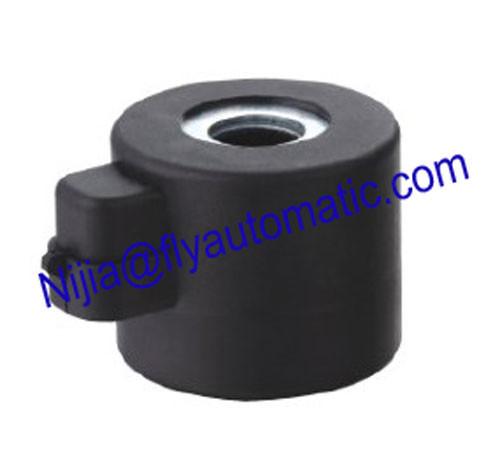

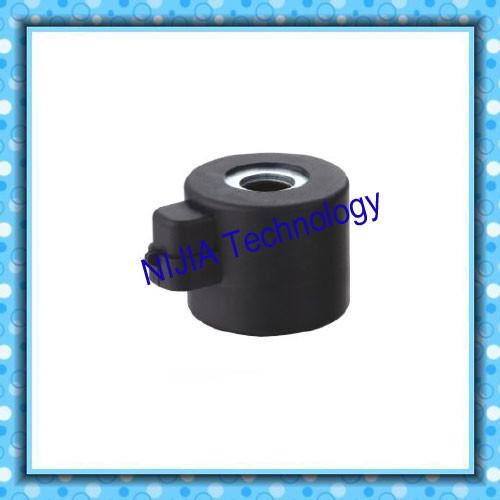

Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm
Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm
Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm
Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm
Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm
Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm
Specifications
Brand Name :
NIJIA
Model Number :
NJT215
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Color :
Black,or customized
Inner hole :
Φ 16.3 × 41.7mm
Standard power consumption :
22W
Coil insulation :
H
Connection type :
DEUTCH
Material :
Thermoplastic
Standard operating voltages: :
12VDC Other voltages on request.
Protection grade :
IP66
Description

Φ 16.3 × 41.7mm Landi reducer Coil Auto Solenoid Valve Coil black DC12V 22W IP65

The NJT215 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.

The NJT215 coils are designed thermoplastic composite material or flame retardant temperature resistant

resin,widely used in LPG/CNG Injection rail Coil etc.

BRC type Relieve Valve Coil NJT215 suitable for automotive valve system.

Φ 16.3 × 41.7mm DC12V 20W ,Other special voltage and power could be customized

It can be supplied with different power consumptions according to specific requirements.

Specifications:

item Landi reducer auto coil
product code NJT215
specification DEUTCH
applied of voltage DC12V
resistant breakdown voltage DC 20W
voltage range ±10%
insulation class H grade
protection grade IP65
ED 100%
temperature resistant range H
coated materials Thermoplastic composite material or flame retardant temperature resistant resin
advantages high temperature resistant, excellent moistureproof property
applications LPG/CNG Injection rail Coil

Drawings:

Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm

Competitive Advantage:

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40

Competitive Advantage:

1. Professional factory and excellent team.

2. Best service from the whole company.

3. High and stable quality.

4. Adequate inventory and quick delivery time.

5. Good package in order to void the problems in transportation.
