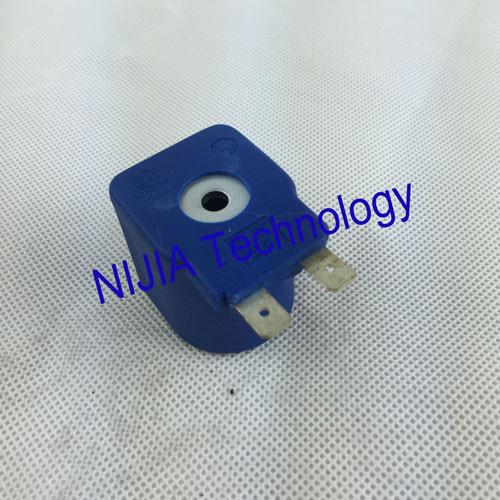

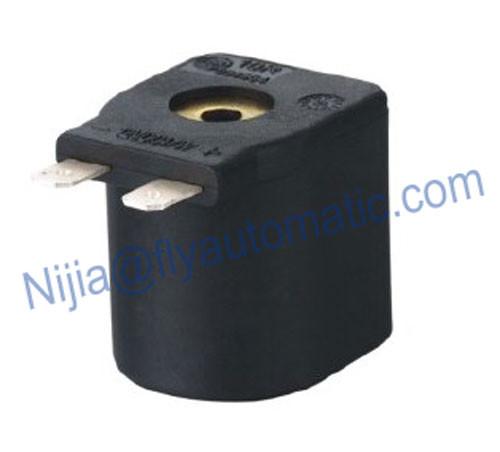

NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm
Specifications
Brand Name :
NIJIA
Model Number :
NJT208
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Color :
black,or customized
Inner hole :
Φ 12 × 36.5mm
Standard power consumption :
17W
Coil insulation :
H
Connection type :
16 × 0.8mm
Material :
Polyamide 66
Standard operating voltages: :
12-24 VDC Other voltages on request.
Operating temperature range: :
-40°C ÷ +120°C
Description

Tomasetto multi point pressure reducer automotive valve coil Φ 12 × 36.5mm DC12V 17W

The NJT208 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.

The NJT208 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.

Tomasetto multi point pressure reducer automotive valve coil NJT204 suitable for automotive valve system.

Φ 12 × 36.5mm DC12V 17W ,Other special voltage and power could be customized

It can be supplied with different power consumptions according to specific requirements.

Specifications:

1. Model number:NJT208

2. Normal voltage:24VDC 12VDC

3. Normal power: 17W 18W 20W (other voltage and power can be customized)

4. Color : Black , ( can be customized )

5. Inner Hole : Φ 12 × 36.5mm

6. Protect class : IP66

7. Insulation class : H

8. Connection Type : 16 × 0.8mm

9. Used to Tomasetto multi point pressure reducer
10. Heavy duty long service life

Drawings:

NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm

NJT208 Tomasetto Multi Point Pressure Reducer Automotive Solenoid Valve Coils Φ 12 × 36.5mm

Competitive Advantage:

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40
