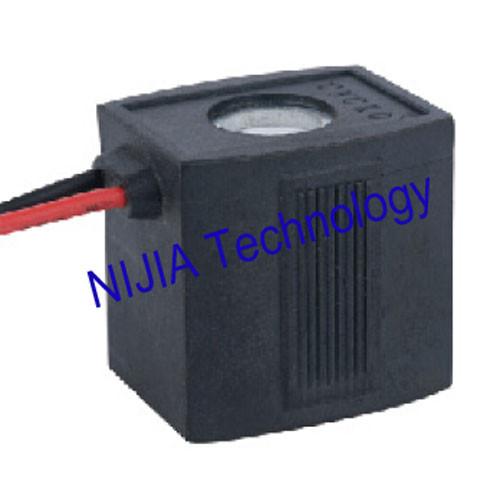

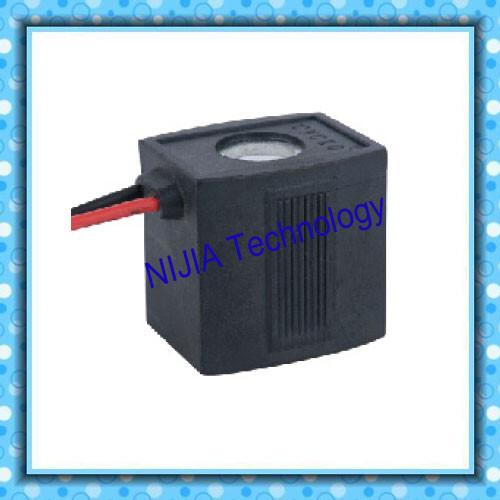

Black 13W Magnet Coil AC Solenoid Coil with F , H Insulation Class
Black 13W Magnet Coil AC Solenoid Coil with F , H Insulation Class
Black 13W Magnet Coil AC Solenoid Coil with F , H Insulation Class
Black 13W Magnet Coil AC Solenoid Coil with F , H Insulation Class
Specifications
Brand Name :
NIJIA
Model Number :
NJF-2
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
NJF-2
Insulation Class :
F or H
Normal Voltage :
24-110-220-230VAC 12-24VDC
Connection Type :
Lead type
Voltage tolerance :
± 10%
Duty cycle: :
100%
Temperature range: :
–20°C ÷ +80°C
Applicability :
Spinning machine
Description

Spinning machine Sewing machine solenoid and coil Inside diameter 13.3mm high 39.5mm flying lead type

Spinning machine series solenoid valve coils could be widely used to sewing machines in textile factory . The ascendancy is durable and stable ,and all solenoids of this system could be sustain high temperature and high pressure , the working life would be used at least 100million cycles.

The system is designed for use with air . Thermosetting material will help the coil more stable and safely.

Specifications:

Product NO. NJF-2
Product type Spinning machine
Normal Voltage DC24V
Normal Power 13W
Insulation Class F , H
Connection Type flying lead type
Applicability spinning machine solenoid valves

Notes: please tell me the voltage you need ,if no remark ,
you will receive 24V DC .


The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65.
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version.


Note :

Voltage tolerance: ± 10%
Temperature range: –10°C ÷ +80°C
Duty cycle: 100%

Standard voltages: 24 - 110 - 230 VAC
12 - 24 VDC
Other voltages on request

Drawings:

Black 13W Magnet Coil AC Solenoid Coil with F , H Insulation Class

Application :

The coil is fastened to the plunger guide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit .
The suggested interface dimensions of the valve body are shown on the right side .
Any change to the prescribed dimensions can effect the performances of the solenoid operator .

Black 13W Magnet Coil AC Solenoid Coil with F , H Insulation Class

Competitive Advantage:

1. Professional R & D team

2. High and stable quality

3. Quick delivery time

4. Good package in order to void the problems in transportation.

5. Best service from the whole company.
