Specifications
Brand Name :
NIJIA
Model Number :
KG
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
1,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
KG
Insulation Class :
F H
Normal Voltage :
AC110V
Connection Type :
DIN43650A
Voltage tolerance :
± 10%
Customized :
Yes
Applicability :
Oil pressure valve
IP :
00/66
Description

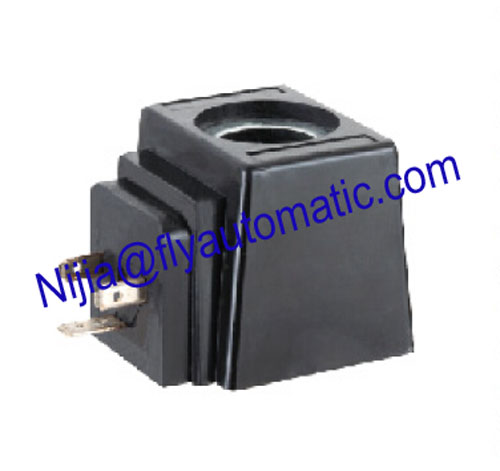

Fuel solenoid valve Oil pressure valve coil inner hole diameter 19.2mm AC110V 25VA DIN43650A

Fuel solenoid valve coil KG are designed for Oil pressure valves.

The ascendancy is durable and stable , and all solenoids of this system could be sustain high temperature and high pressure , the working life would be used at least 100million cycles.

The working conditions is stable,thermoplastic type.

All solenoids of this system have the stable power and good insulation,could be able to adapt to the bad

environment.

Other specific voltage and power could be customized as your request.

Specifications:

Brand name NIJIA
Model number KG
Voltage AC110V
Working Medium Air
Operating Method Direct action
Pipe Size 1/8" 1/4" 3/8" 1/2" 1" 2"
Color Black
Working Temperature "-5~80°C

Note :

Voltage tolerance: ± 10%
Temperature range: –10°C ÷ +80°C
Duty cycle: 100%

Standard voltages: 24 - 110 - 230 VAC
12 - 24 VDC
Other voltages on request

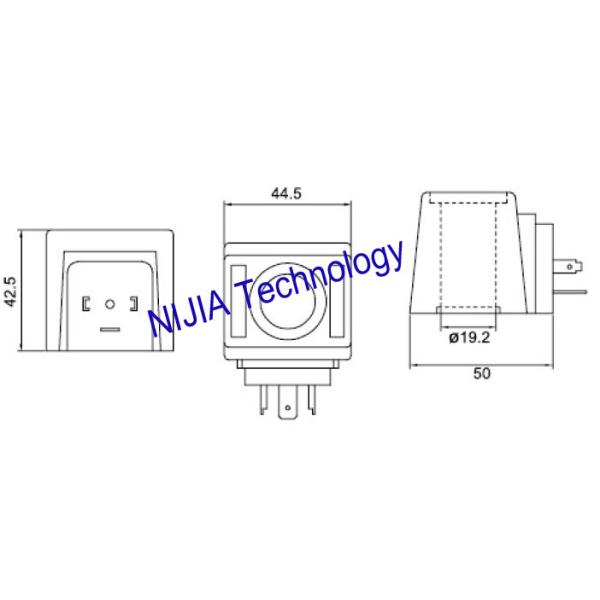

Drawings:

Fuel Solenoid Valve Oil Pressure Valve Coil AC110V 25VA DIN43650A

Fuel Solenoid Valve Oil Pressure Valve Coil AC110V 25VA DIN43650A

Competitive Advantage:

1. Professional factory and excellent team .

2. High and stable quality .

3. Adequate inventory and quick delivery time .

4. Good package in order to void the problems in transportation .

5. Best service from the whole company .

Quality Standards :

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
