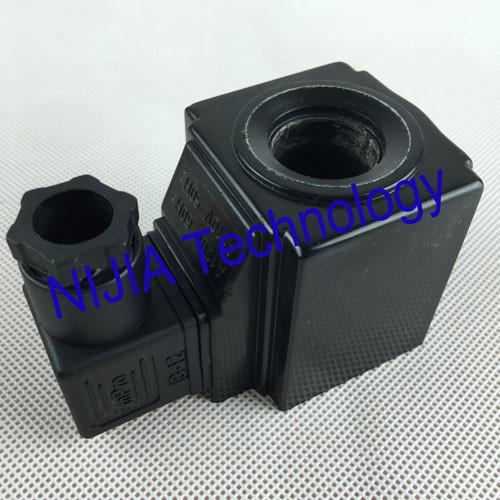

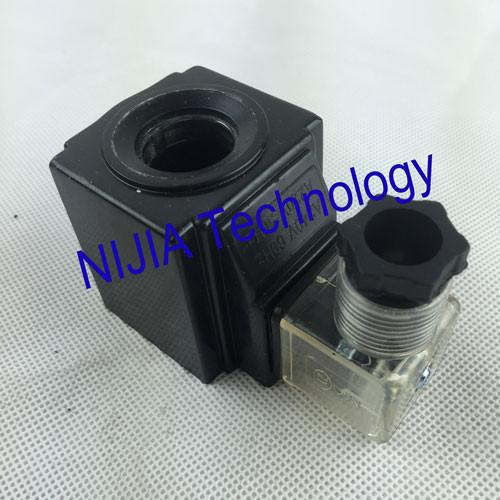

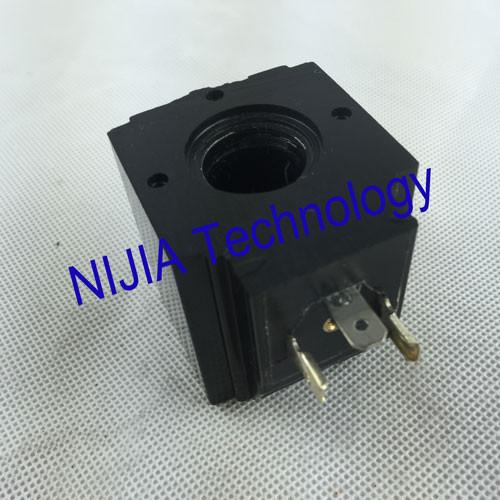

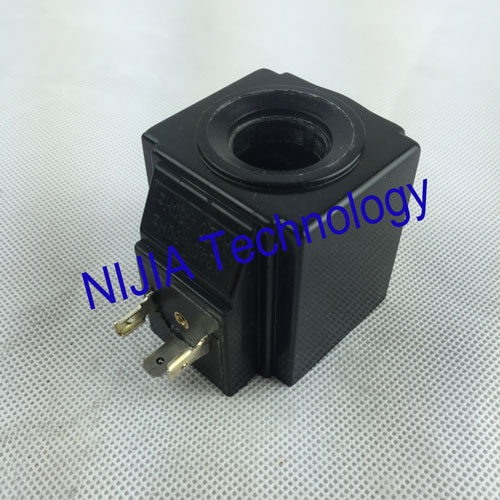

Hydraulic solenoid valve coil IP67 coil DIN43650 AC220V AC110V insert diameter 20mm high 52.2mm

The Hydraulic Solenoid valve coil NIJIA405 insert diameter 20mm high 52.2mm suitable for IP67 hydraulic applications . It can be supplied with different power consumptions according to specific requirements.
The NJT405 coil system includes a wide range of electrical coils suitable for cartridge valves for mobile hydraulics .

Specifications:

• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 30 mm coil ).

• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 30 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
The use of other materials is possible upon special agreements . All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions . For use in special ambients with high humidity , we suggest the sealed or thermoset version.

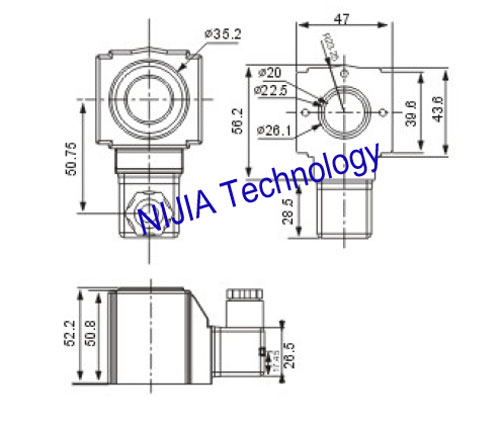

Drawings:

Electrical Connections:

Degree of protection: IP 54 ( EN 60529 )

With connector and suitable seals it can reach:

Terminal box IP65

KOSTAL (M27X1) IP67

FLYING LEADS IP67

AMP JUNIOR IP65

DEUTSCH DT04 IP69K

AMP SUPERSEAL IP69K

METRIPACK2 IP69K
