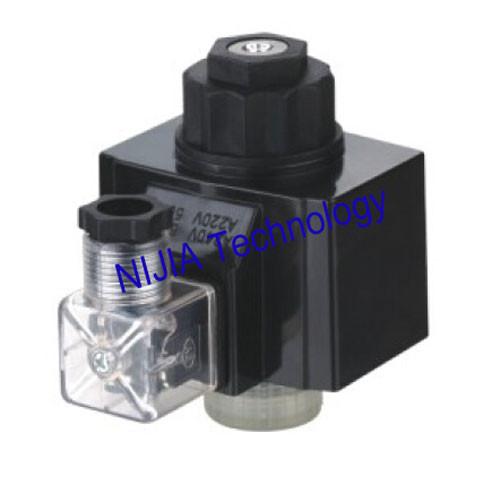

Yuken Solenoid Coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V
Yuken Solenoid Coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V
Yuken Solenoid Coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V
Yuken Solenoid Coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V
Specifications
Brand Name :
YUKEN
Model Number :
NJT503
Certification :
ISO9001CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T,western Union,Paypal,Credit card
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Product Name :
Yuken Type Solenoid coil
Rated voltage :
220V 110V
Rated Suction :
50N
Sated Stroke :
4mm
Total Stroke :
≥8.5
Operating Power :
40w
Static Oil Pressure :
21Mpa
Operating Frquency :
12000T/h
Threaded Connection :
M24*1.5
Description

Yuken Type Solenoid coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V

The Yuken hydraulic Solenoid coil suitable for Yuken hydraulic applications . It can be supplied with different power consumptions according to specific requirements.Yuken Type Solenoid coil for Hydraulic

DSG-02
DSG-03-2B3-A240-N1-50
DSG-03-2B3B-A240-N1-50
DSG-03-2B2B-A240-N1-50
DSG-03-2B11B-A240-N1-50

Specifications:

• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
The use of other materials is possible upon special agreements . All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions . For use in special ambients with high humidity , we suggest the sealed or thermoset version.

Drawings:

Yuken Solenoid Coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V

Yuken Solenoid Coil for Hydraulic Solenoid Directional Control Valve DSG-02-2B2L-LW-DC12V

Electrical Connections:

Degree of protection: IP 54 ( EN 60529 )

With connector and suitable seals it can reach:

DIN 43650A IP65

KOSTAL (M27X1) IP67

FLYING LEADS IP67

AMP JUNIOR IP65

DEUTSCH DT04 IP69K

AMP SUPERSEAL IP69K

METRIPACK2 IP69K

Competitive Advantage:

1. Professional workshops .

2. High and stable quality .

3. Quick delivery time .

4. Good package in order to void the problems in transportation .

5. Best service from the whole company .
