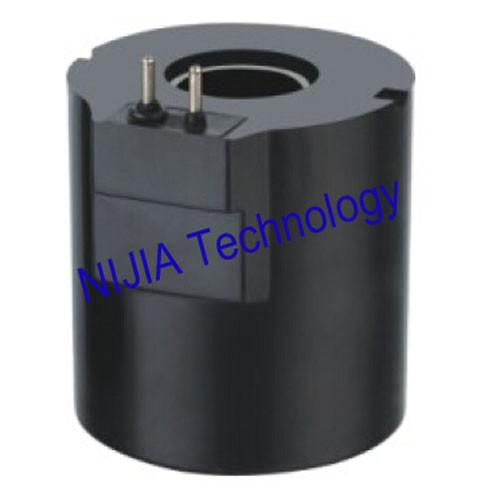

Hydraulic solenoid coil PIN 2 terminal box type Inner diameter 26.2mm high 73.5mm

The Hydraulic Solenoid coil NIJIA401 Coil suitable for hydraulic applications . It can be supplied with different power consumptions according to specific requirements.
The NJT401 coil system includes a wide range of electrical coils suitable for cartridge valves for mobile hydraulics .

The NJT401 coils are designed to fit most of the current applications and offer a choice of electrical terminations like DIN 43650 , Kostal M27x1 , AMP Junior , Flying Leads , AMP Superseal , Metripack and Deutsch.

Specifications:

• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
The use of other materials is possible upon special agreements . All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions . For use in special ambients with high humidity , we suggest the sealed or thermoset version.

Drawings:

Electrical Connections:

Degree of protection: IP 54 ( EN 60529 )

With connector and suitable seals it can reach:

DIN 43650A IP65

KOSTAL (M27X1) IP67

FLYING LEADS IP67

AMP JUNIOR IP65

DEUTSCH DT04 IP69K

AMP SUPERSEAL IP69K

METRIPACK2 IP69K

Competitive Advantage:

1. Professional workshops .

2. High and stable quality .

3. Quick delivery time .

4. Good package in order to void the problems in transportation .

5. Best service from the whole company .
