Specifications
Brand Name :
Festo
Model Number :
MSB4/MSB6-FRC
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :
10000 pieces per 10 working days
Delivery Time :
2 work days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Port size :
1/8" 1/4" 3/8" 1/2"
Body mateial :
Aluminium alloy
Working Pressure :
0.15-2 MPa
Ambient temperature :
-40-100 ℃
Description

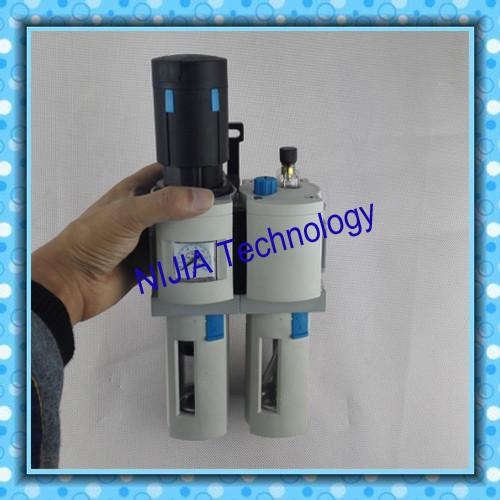

Festo MS MSB series Air source treatment unit combinations MSB4/MSB6-FRC 1/8" 1/4" 3/8" 1/2"

Description

1. Filter, regulator and lubricator function in a single unit.

2. High flow rate and highly efficient removal of contaminants.

3. Good regulating characteristics with minimal pressure hysteresis.

4. Setting values are secured by locking the rotary knob.

5. Lockable rotary knob

6. Two pressure regulation ranges: 0.3 … 7 bar and 0.5 … 12 bar.

7. With manual or integrated, fully automatic condensate drain.

8. Choice of filter cartridges: 5 μm or 40 μm.

9. New filter cartridges  16, Festo special oil  16

General technical data

Size MSB4 MSB6
Pneumatic connection 1, 2 G 1/8 -
G 1/4 G 1/4
- G 3/8
- G 1/2
Design Filter regulator with pressure gauge
Proportional standard mist lubricator
Regulating function Output pressure constant, with primary pressure compensation, with return flow function, with secondary venting
Type of mounting Via accessories
Assembly position Vertical ±5°
Grade of filtration [μm] 5
40
Air purity class at the output Compressed air in accordance with ISO 85731:2010 [6:4:–] (grade of filtration 5 μm)
Compressed air in accordance with ISO 85731:2010 [7:4:–] (grade of filtration 40 μm)
Bowl guard Plastic bowl guard Plastic bowl guard
- Integrated as metal bowl
Condensate drains Manual rotary
Fully automatic
Actuator lock Rotary knob with detent, lockable via accessories
Pressure regulation range [bar] 0.3 … 7
0.5 … 12
Pressure indicator With pressure gauge

Structure

Air Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPa

Type B1 B2 B3 B4 B5 B6 D1 L1 L2 L3 L4 L5 16 L7 L8
Condensate drain
manual
rotary		 fully auto-matic
MSB4-1/8 80.4 40.2 21 57 44 29.7 G 1/8 201 87 60 80 25 17.7 20.4 167 53
MSB4-1/4 G1/4
　
MSB6-1/4 124 62 31 77 54 38.8 G 1/4 284.8 134.5 95.5 130 68 15.8 18.5 215.3 65.6
MSB6-3/8 G 3/8
MSB6-1/2 G 1/2

Material

Air Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPa

① Body Die-cast aluminium
② Regulating knob PA/POM
③ Plastic bowl guard PC
④ Metal bowl Wrought aluminium alloy
– Seals NBR

Quality Standards


1. The company for the products are brand new original products, no second-hand and refurbished

products, or leave a compensable ten and return the full amount.

2. The buyer due to our purchase of model error is not responsible for returns.

3. Another of the company's sales of products enjoy one year from the date of shipment quality

assurance, according to the original quality standards, during warranty with product problems' need

confirmation testing by the manufacturer, the supplier to be solved ,the demand side due to storage,

use, poor maintenance caused by lower-quality product, and not raise objections.

Delivery

The products will be sent out together by Fedex, DHL, TNT, or SF Express and so on. Of cause, if you

have a special requirements, we will do as you told.

In addition

The product include the diaphragm big/small and spring. If you have received the product has a

problem, please let me know, I will help you to solve the question first time.

Pictures show

Air Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPaAir Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPaAir Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPaAir Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPaAir Source Treatment Dump Truck Valve Aluminium Alloy 0.15-2 MPa
