Specifications
Brand Name :
AIRWOLF
Model Number :
ITS300
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :
2000 pieces per 10 working days
Delivery Time :
1-7 work days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Model :
ITS300
Material: :
Aluminum Diecasting
Ambient temperature :
-20℃~+60℃
osition indicator :
Dome type 0°~90°
Enclosure :
IP67
Description

ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback

Description
ITS 300 series are designed suitable for valve and actuatorsin hazardous area application, having compact but robustconstruction
conforms to IEC60079-0:2007,
IEC60079-1 :2007, EN60079-0:2006 and EN60079- 1:2007,also suitable in Zone 1 and 2, and ingress protection IP67,Standard aluminum
housing provides reliable explosion proofperformance.

Feature
Rigid and compact design constructed from aluminumalloy die-casting capable of operating even in arduous conditions.

Specification Standard Option
Enclosure Explosion proof Ex d IIC T6 Gb, IP67, O-ring sealed IP 68
Outside coating Epoxy-Polyester outside against corrosion Nylon Coating
Special color Coating
Ambient temperature -20℃ ~+80℃
(Explosion proof type: -20℃~+60℃)		 Higher(~100℃)
and lower (-40℃) temperature
Cable entries 2 - PF3/4, other standard threads NPT3/4, M20x1.5, M25x1.5)
Terminal block 8 nos of terminal strips
(6 for switches, 2 for solenoid valve power)

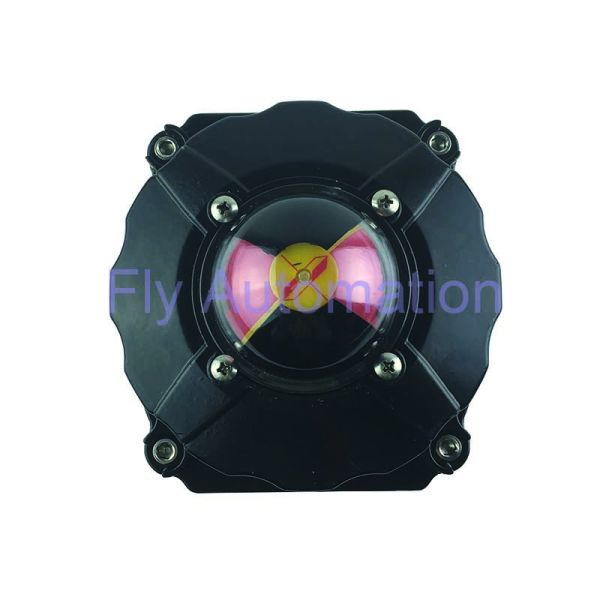

Position indicator Dome type 0°~90° Others(3 way L-port, T-port)
Mounting bracket Stainless steel acc. to VDI/VDE3845
NAMUR, SS1, SS2 as standard		 SS3, MT1 as option
Switches (sensors) 2-SPDT mechanical switch(Form C) SS3, MT1 as option

ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback

ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedbackITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback

Serves time
0:00 - 23:59
From Monday to Sunday

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
