AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
Specifications
Brand Name :
AIRWOLF
Model Number :
EVI7/9
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :
2000 pieces per 10 working days
Delivery Time :
1-7 work days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Voltage :
AC220 DC24V
Width :
22mm
Protection class :
IP65, IP67, IP68
Temperature range :
-40~50
Description

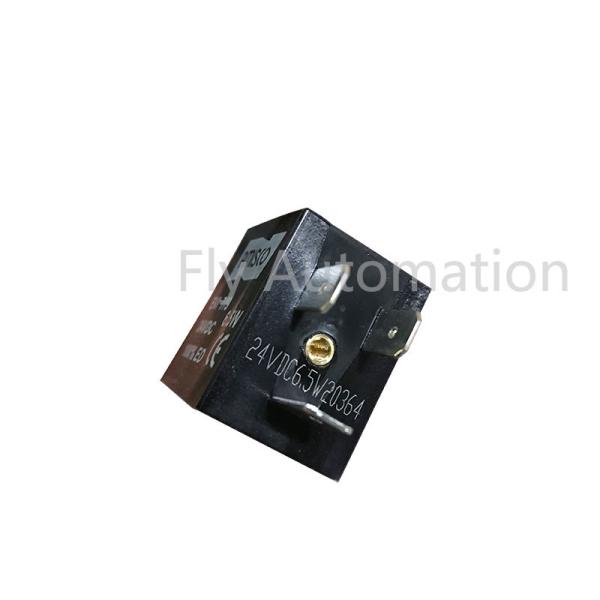

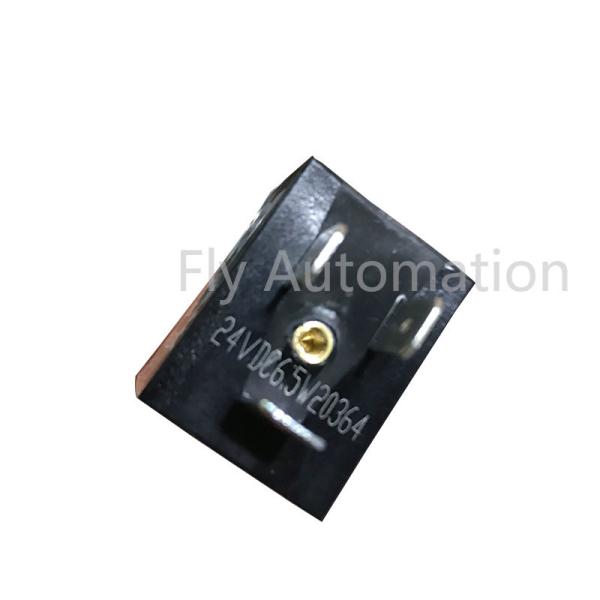

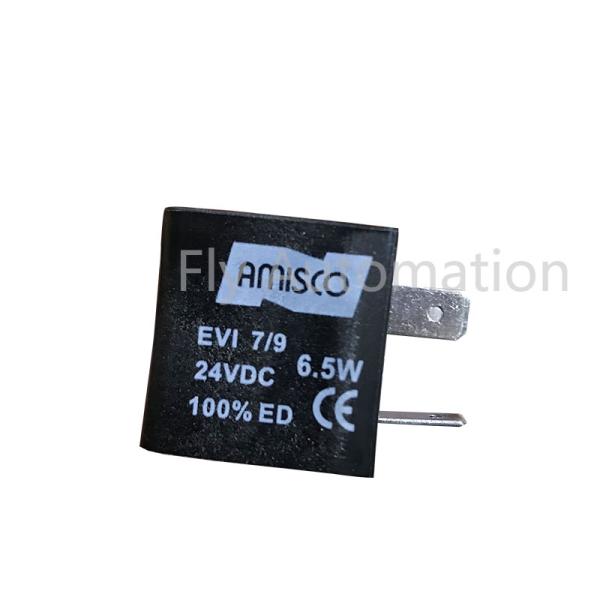

AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10

The EVI 7 system by Amisco includes a wide range of 22mm coils, designed for pneumatic applications.
This coil family is available for tubes with 8, 9 and 10mm diameter.
The coils are available with different voltages and connections: types, power and other features are described in the following pages.
All coils feature:
• heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• class H wire 200°C according to IEC 60317-13
• built-in magnetic yoke made by low carbon iron
•encapsulation with high quality specially designed glass filled nylon (thermoset material on demand for EVI 7/9 coil)
• copper andplastic material used are UL-Listed The use of other materials is possible upon special agreements. Coils are rated to class F.
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient
conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version; please refer to kit for humid application (details in the following pages)
The coil is also in conformity with 2014/34/UE for electrical apparatus of group II, category 3 (Ex nA II 3 GD T3, T4, T5) GAS: Ex nA IIC Tx Gc
DUST: Ex tc IIIC Tx Dc
Width:
22.0mm
Voltage:
AC220V, DC24V
Protection class:
IP65, IP67, IP68
Voltage tolerance:
± 10%
Temperature range:
–40°C ÷ +50°C
Duty cycle:
100%

AMISCO EVI7/9 Solenoid valve coil 22mm coil EVI 7Series EVI7/8 EVI7/10
