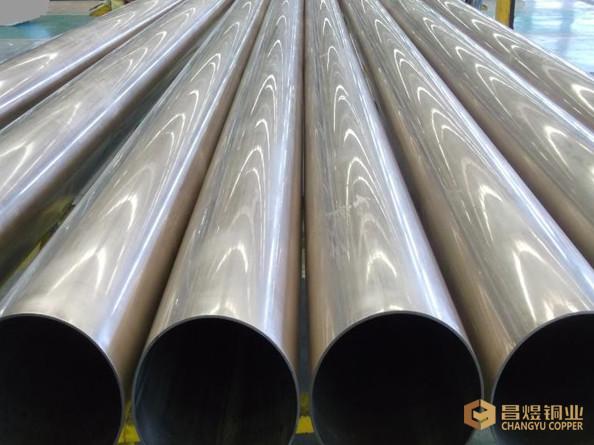

Cupro Nickel Solid Copper Tube C70600 Low Resistance Difference Bright Surface
Cupro Nickel Solid Copper Tube C70600 Low Resistance Difference Bright Surface
Specifications
Brand Name :
CHANGYU
Certification :
ISO9001,CE,SGS
Place of Origin :
China
MOQ :
A ton
Price :
Based on the price of the day
Payment Terms :
T/T, L/C
Supply Ability :
Spot adequacy
Delivery Time :
Fifteen days
Packaging Details :
Wooden packing
Description

High Conductivity Copper Platoon

Product Description

High conductivity copper platoon is a high-quality conductive material for manufacturing windings, high and low voltage electrical appliances, switch contacts, and wires for electrical installation. The oxygen-free copper bus bar produced by our company uses oxygen-free copper rod as blank material. After continuous extrusion molding, the product has such advantages as high copper content (≥99.97%), low oxygen content (≤10ppm), dense and uniform structure, and low resistivity, low resistance difference, bright surface and free supply length.

Product model: WTMR (soft state), WTMY (hard state)

Introduction

1. Standard: Implementing the Chinese national standard GB/T 5585.1-2005.

2. General classification: Right angle & rounded corner (commonly known as straight edge, rounded edge).

3. Section range: 30--3000mm&sup2, Thickness range 3mm-12mm, width range 10mm-125mm.

4. Conductive performance: Closely related to the ambient temperature of the bus bar operation.

Calculating the current carrying current (40°) can be easily calculated according to the following formula: (Specification quantity units are taken in mm)

Bus bar specification: A (thickness) * B (width)

Monolithic current carrying ≈B*(A+8.5)

5. Weight calculation: At present, the copper bus bars produced are mostly 6 meters long, so the formula for calculating the weight after simplification is as below:

Weight(single copper bus bar) ≈A*B*0.0534 kg

Weight(one meter copper bus bar) ≈A*B*0.0089 kg

(Thickness: A (mm), Width: B (mm))
