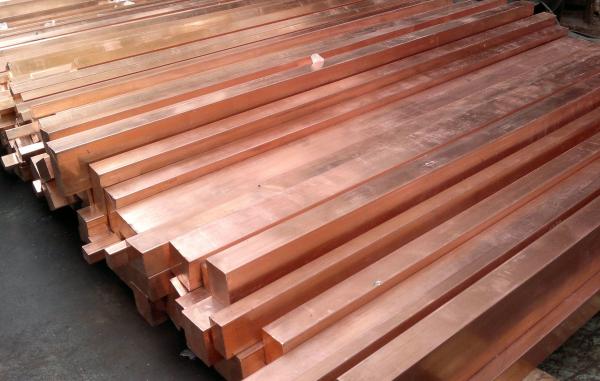

Square Solid Copper Bar Golden Yellow GB/T 5585.1-2005 Thickness 3mm-12mm
Square Solid Copper Bar Golden Yellow GB/T 5585.1-2005 Thickness 3mm-12mm
Specifications
Brand Name :
CHANGYU
Certification :
ISO9001,CE,SGS
Place of Origin :
China
MOQ :
A ton
Price :
Based on the price of the day
Payment Terms :
T/T, L/C
Supply Ability :
Spot adequacy
Delivery Time :
Fifteen days
Packaging Details :
Wooden packing
shape :
square
material :
Copper
Color :
golden yellow
Description

Square Solid Bar

Product Description

Maximetal is professional manufacturer and supplier of copper bar/rod.Quality guaranteed,on-time delivery, after-sales warranty,We hold large inventories of stainless steel products in a large of variety of grade,including stainless,duplex,nickel alloy and more,The ISO 9001 management system ensure the high quality of the products.

Product model: WTMY (hard state)

Introduction

1. Standard: Implementing the Chinese national standard GB/T 5585.1-2005.

2. General classification: Right angle & rounded corner (commonly known as straight edge, rounded edge).

3. Section range: 30--3000mm&sup2, Thickness range 3mm-12mm, width range 10mm-125mm.

4. Conductive performance: Closely related to the ambient temperature of the bus bar operation.

Calculating the current carrying current (40°) can be easily calculated according to the following formula: (Specification quantity units are taken in mm)

Bus bar specification: A (thickness) * B (width)

Monolithic current carrying ≈B*(A+8.5)

5. Weight calculation: At present, the copper bus bars produced are mostly 6 meters long, so the formula for calculating the weight after simplification is as below:

Weight(single copper bus bar) ≈A*B*0.0534 kg

Weight(one meter copper bus bar) ≈A*B*0.0089 kg

(Thickness: A (mm), Width: B (mm))
