Vacuum Belt Filter Press Dewatering 5M2 Belt Press For Sludge Dewatering
Vacuum Belt Filter Press Dewatering 5M2 Belt Press For Sludge Dewatering
Vacuum Belt Filter Press Dewatering 5M2 Belt Press For Sludge Dewatering
Vacuum Belt Filter Press Dewatering 5M2 Belt Press For Sludge Dewatering
Specifications
Brand Name :
UNIVEE
Model Number :
U-HVBF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Material Of Construction :
Steel
Drive System :
Variable Speed Drive
Type :
Continuous Vacuum Filter
Filtration Area :
5M2
Vacuum Source :
Vacuum Pump
Filter Cake Wash :
Counter-Current Wash
Filter Cake Discharge :
Scraper
Operation :
Full Automatic
Condition :
Brand New
Description

Slurry Dewatering Belt Filter With PLC Control Filtration Area 5 Square Meters

Product Description:

Horizontal Vacuum Belt Filter(HVBF)is a kind of hi-efficiency solid-liquid separation equipment. With the supporting of vacuum box, the rubber belt is slipping on the vacuum box, which a sealing movement structure is formed between vacuum box and belt. The solid-liquid separation is achieved by a negative vacuum pressure.

One of the key features of the Horizontal Belt Filter is its Counter-Current Wash mechanism. This allows for efficient and thorough cleaning of the filter cake, ensuring that it is free from any impurities or contaminants.

The filtrate section is along the horizontal direction of the horizontal vacuum belt filter, it can continuously achieves a serious technical processes of filtration, cake washing, discharging, filter washing, etc.. The mother liquid and cake washing liquid can be collected by different cavities.

Vacuum Belt Filter Press Dewatering 5M2 Belt Press For Sludge Dewatering

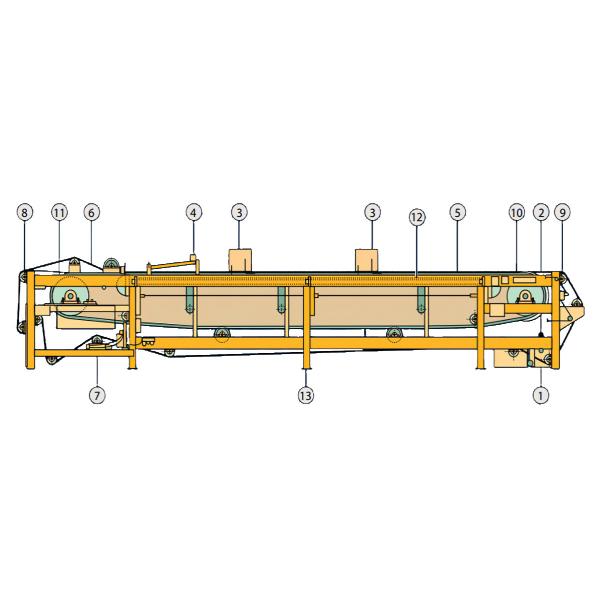

1 Filter Cloth Washing 8 Filter Cloth Tension Unit
2 Belt Washing 9 Discharge Roll
3 Cake Washing Box 10 Drive Pulley
4 Slurry Feeding Hopper 11 Driven Pulley
5 Rubber Belt 12 Vacuum Box
6 Filter Cloth 13 Filter Support Frame
7 Filter Cloth Tracking Unit

Main Equipment:

Vacuum Box Lfting Device Vacuum box is assembled by sections, each section is connected with filtrate pipe to form a vacuum filtrate collecting system. With a lifting device of vacuum box, it is more convenience for wear belt replacement.
Tracking Device Adopt cylinder or bellows to adjust the tracking of cloth automatically by switching the tracking angles. It can ensure the normal operation of cloth.
Tension Unit By adjusting the tension of rubber belt to ensure the friction force of belt and no tracking happened.
Washing Device Adopt countercurrent and concurrent spraying devices, which can switch to concurrent washing and countercurrent washing according to differently slurries and process requirement, which can washing the materials more completely.

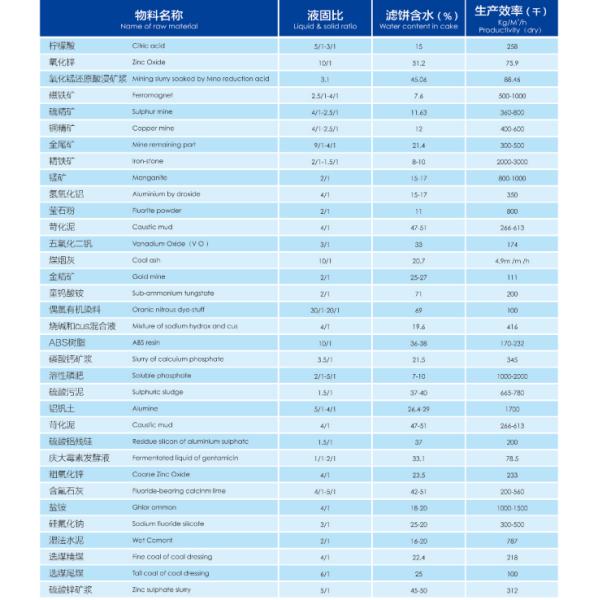

Application:


Vacuum Belt Filter Press Dewatering 5M2 Belt Press For Sludge Dewatering

Packing and Delivery:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.

Packed with fumigation package

Packed in plastic lorap, double bister and jute rope
