Product Description:

The Horizontal Belt Filter has a counter-current wash system that ensures thorough washing of the filter cake. This system is designed to minimize the amount of wash water used, making it an efficient and cost-effective filtration solution.

The Horizontal Belt Filter has a filtration area that ranges from 10-1000 M2, allowing it to handle large volumes of material. Its continuous operation also makes it ideal for applications where a high throughput is required.

The filtering, cleaning, residue unloading and filter fabrics cleaning during the production process can be done in order with the operation of rubber belt. Therefore the filtering efficiency has been improved and energy consumption has been lowered.

The Horizontal Vacuum Belt Filter is consisted of rubber belt, vacuum box, pulley and rollers, supporting frame, filter cloth, etc. these components are formed a highly efficient equipment realizing solid and liquid separation by fully taking advantage of material gravity and vacuum drawing power.

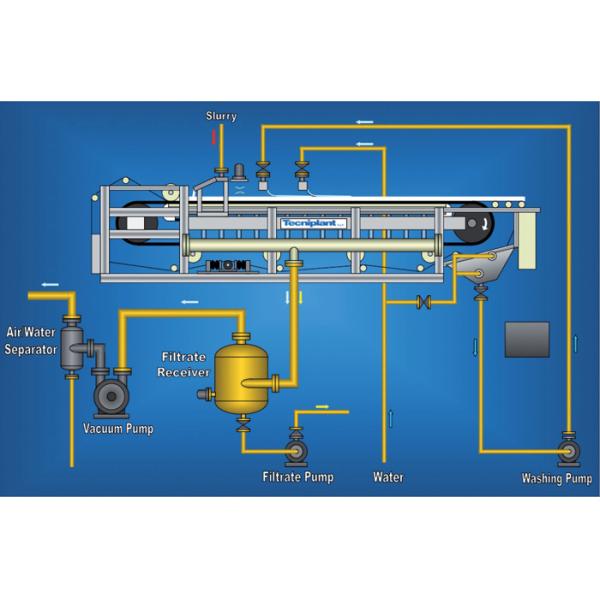

Technical Process

Features:

• Product Name: Horizontal Belt Filter
• Vacuum Source: Vacuum Pump
• Application: Solid-Liquid Separation
• Material Of Construction: Stainless Steel Or Carbon Steel
• Control System: PLC Or DCS
• Operation: Continuous

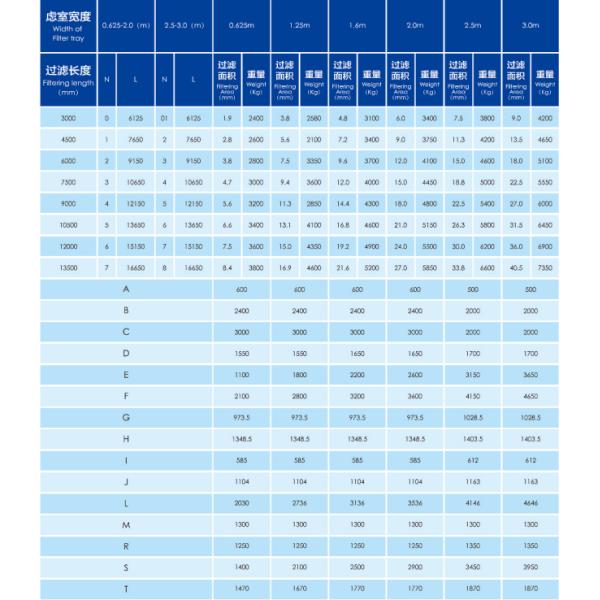

Technical Parameters:

Applications:

The UNIVEE U-HVBF Horizontal Belt Dehydrator is an ideal solution for slurry treatment in various industries. The HVBF is improved and completed during couple of years, the technical characteristics and quality are meet the international advanced level. It is widely applied in metallurgical industry, mine, chemical industry, papermaking, food industry, pharmacy, coal washing, environmental areas, especially in flue gas desulfurization (FGD) for gypsum dewatering and tailings treatment.

Packing and Shipping:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

FAQ:

Q: What is the brand name of the Horizontal Belt Filter?

A: The brand name of this product is UNIVEE.

Q: What is the model number of the Horizontal Belt Filter?

A: The model number of this product is U-HVBF.

Q: Where is the Horizontal Belt Filter manufactured?

A: The Horizontal Belt Filter is manufactured in China.

Q: What is the capacity of the Horizontal Belt Filter?

A: The capacity of this product varies depending on the specific model. Please refer to the product specifications for more information.

Q: What is the warranty period for the Horizontal Belt Filter?

A: We are sorry, but we cannot answer warranty-related questions as they are subject to change. Please consult the product documentation or contact our customer service team for more information.
