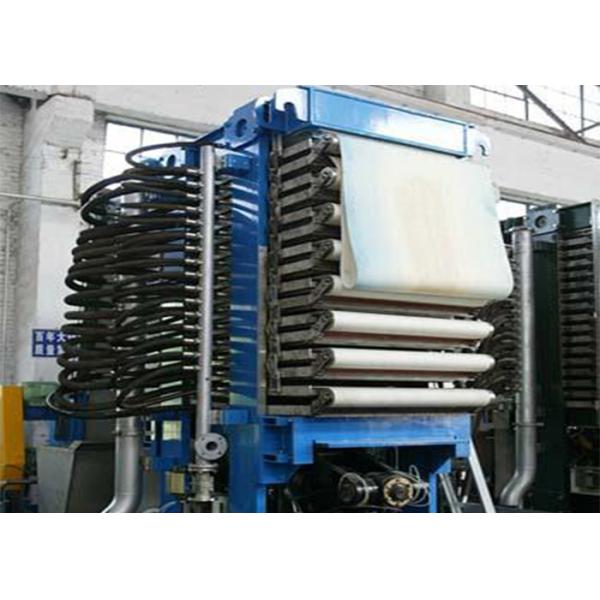

Product Description:

The filter press is widely used in urban sewage, textile printing and dyeing, electroplate, papermaking, leather, brewing, food processing, coal washing, petrochemical industry, chemistry, metallurgy, mineral separation, pharmacy, ceramic industry sludge dewatering, etc. also use in industry production solid_liquid separation or liquid leaching process.

Operation Principle:

• Filtering	When the plates group closed, pump the slurry to filter, use distributed hose to feeding slurry to each slurry chamber, and filtrate pass through the cloth to filtrate frame and discharae out, the solid formed a cake on cloth surface.
  Extrusion	High pressure water fed into upper chamber of rubber diaphragm, make the diaphragm expand and extruding the cake and the liquid will be extruding out from cake.
  Cake washing	Washing water feeding into slurry chamber throuah distributed hose cover on the cake completely,under the pressure, the washing water pass throuah the cake and cloth to discharge out.
  Air drying	Compressed air through distributed hose feeding into slurry chamber and pressing rubber diaphragm, make the high-pressure water in the rubber diaphragm to discharge out, and the compressed air pass through cake and take liguid out to decrease the cake moisture to the lowest level.
  Cake discharging	When finished the air-drying process, open the plates group, drive system makes the cloth running and the cake discharge out on the two sides of filter at the same time.

Technical Parameters:

Applications:

It is widely used in urban sewage, textile printing and dyeing, electroplate, papermaking, leather, brewing, food processing, coal washing, petrochemical industry, chemistry, metallurgy, mineral separation, pharmacy, ceramic industry sludge dewatering and so on.

Packing and Shipping:

Product Packaging for Press Filter:

• One Press Filter
• One instruction manual
• One cleaning brush

Shipping:

• Shipping Method: Standard Shipping

FAQ:

Q: Where is the UNIVEE U-PF Press Filter manufactured?

A: The UNIVEE U-PF Press Filter is manufactured in China.

Q: What is the capacity of the UNIVEE U-PF Press Filter?

A: The UNIVEE U-PF Press Filter has a capacity of 1 liter.

Q: What is the warranty period for the UNIVEE U-PF Press Filter?

A: Please refer to the warranty information provided in the product manual.

Q: Is the UNIVEE U-PF Press Filter easy to clean?

A: Yes, the UNIVEE U-PF Press Filter is easy to clean and maintain.
