Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers
Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers
Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers
Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers
Specifications
Brand Name :
UNIVEE
Model Number :
U-PF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Control :
PLC
Material :
SS
Cake :
Dry
Application :
Food, Textile Printing and Dyeing etc
Washing :
High Pressure Washing
Foot Print :
Small
Layer :
4
Condition :
New
Description

Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers

Product Description:

Press filter is a kind of high-efficiency, energy-saving and intelligent solid-liquid separation equipment. lt makes full use of the slurry feeding pump pressure, slurry properties and rubber diaphragm extrusion pressure, and use filter cloth as filter medium to separate the solid and liquid from slurry.

The extrusion pressure up to 1.6MPa, it widely used in the field which has different requirements for cake moisture. Hydraulic drive control system, make the operation stable and with low power consumption.

Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers

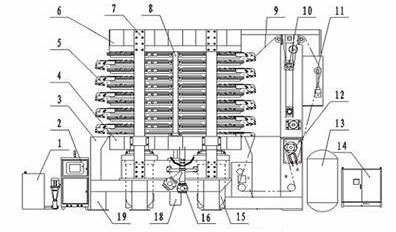

Structure of Press Filter:

Auto SIEMENS PLC Press Filter Rubber Lining Seal Sewage Filtration 4 Layers
1 Bottom press plate 9 Pipeline
2 Columns 10 Guiding component
3 Quick reaction cylinders 11 Hydraulic Unit
4 Upper press plate 12 Control panel
5 Frame 13 Valves
6 Cloth conveyor unit and cake chute 14 Cloth
7 Plate frame unit 15 Hydraulic pipeline
8 Rollers 16 Side guards and maintenance platform

Technical Parameters:

Filter area (m2) 1 2 3
Plate size (mm) 0.5m*/ layer
Plate Qty. (layer) 2 4 6
Length (m) 2.5
Width (m) 1.5
Height (m) 2.0 2.2 2.5
Weight (T) 8 9 10
Hydraulic station power (KW) 7.5
Extrusion pump head (m) 167
Extrusion pump flowrate (m/h) 8
Extrusion pump power (KW) 7.5

Applications:

It is widely used in urban sewage, textile printing and dyeing, electroplate, papermaking, leather, brewing, food processing, coal

washing, petrochemical industry, chemistry, metallurgy, mineral separation, pharmacy, ceramic industry sludge dewatering, etc.

Support and Services:

Customized design
Equipment supply
Installation and commissioning
Operator training and process optimization
Routine maintenance and troubleshooting
Spare Parts and consumables

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is UNIVEE.

Q: What is the model number of this product?

A: The model number of this product is U-PF.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What is the material used for this product?

A: The material used for this product is high-quality stainless steel.
