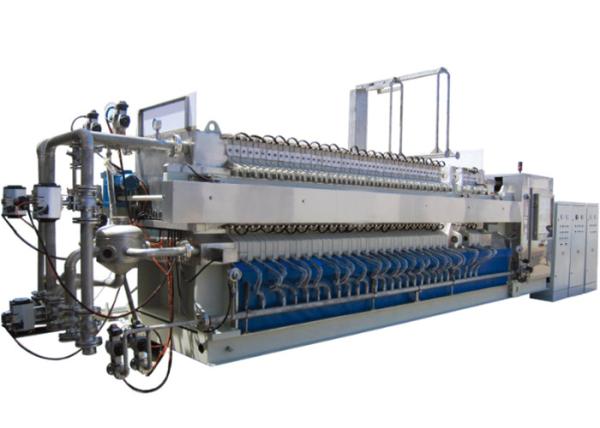

30mm Cake Chamber Press Filter Small Foot Print Filter Presses For Sludge Treatment
30mm Cake Chamber Press Filter Small Foot Print Filter Presses For Sludge Treatment
30mm Cake Chamber Press Filter Small Foot Print Filter Presses For Sludge Treatment
30mm Cake Chamber Press Filter Small Foot Print Filter Presses For Sludge Treatment
Specifications
Brand Name :
UNIVEE
Model Number :
U-PF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Name :
Sewage Filter
Application :
Solid Liquid Filtration
Material :
Mild Steel
Thickness of Cake :
30mm
Plate :
Yes
Particle :
Blocking
Condition :
New
Services :
Available
Description

Hydraulic Compass Unit Chamber Press Filter Small Foot Print Cake Thickness 30mm

Product Description:

Filter press is a common solid-liquid separation equipment, using special filtering medium to press on the object and dialyze out the liquid.

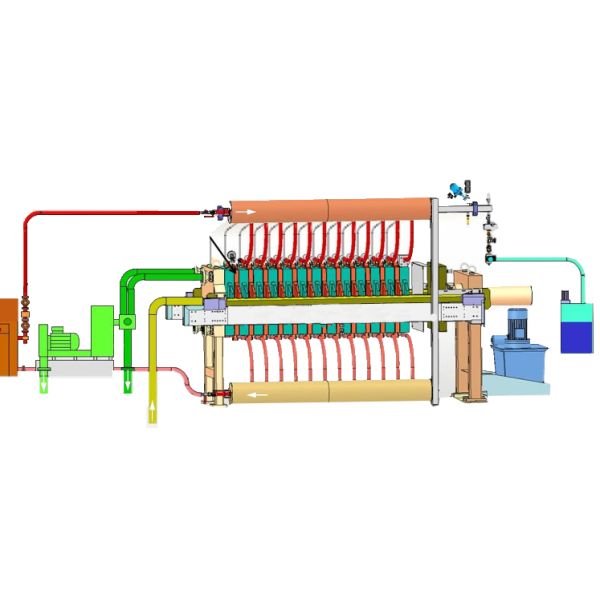

Structure of press filter:

Frame Frame is the basic component of filter press. Thrust plate and compass plate is on the two side of filter press, connected by side beams. Main beam supports the filter plate, filter frame and press plate.
Thrust plate Thrust plate connects filter press and foundation. The feeding hole of chamber type filter press is in the middle of thrust plate, other four holes are on four corners. The upper two holes are inlet of cleaning solution and compressed air; the lower holes are outlet.
Compass plate Compass plate uses to press the filter plate and filter frame tightly, the rollers on two side to compass plate can slide on the rail of main beam.
Main beam Bearing components, according to the corrosion requirement, it can choose rigid polyvinyl chloride (RPVC), polypropylene (PP), stainless steel or new anticorrosive coating, etc
Compass unit

It can be divided in manual compass, mechanical compass, hydraulic compass.

30mm Cake Chamber Press Filter Small Foot Print Filter Presses For Sludge Treatment

Features:

Stable operation, low consumption
Widely applicated in different area for different cake moisture requirement
Integrated PLC, HMI and automatic instrumentation control system, intelligent, hi-efficient, more conveniency
Cloth washing more cleanly
Reasonable design structure

Technical Parameters:

Filter Area (㎡) Outer Plate Slze (mm) Inside Frame Size ((mm) Cake Thickness (mm) Number of Plate and Frame (Pair) Chamber Volume (L)
20 900x900 800×600 30 17 300
30 25 450
40 33 600
50 41 750
60 50 900
70 58 1050
80 66 1200
100 82 1500

Applications:

The Press Filter is applied in chemical industry, pharmacy, metallurgy, dyestuff, food, brewing industry, ceramic and environmental protection industries.

30mm Cake Chamber Press Filter Small Foot Print Filter Presses For Sludge Treatment

Support and Services:

Customized design
Equipment supply
Installation and commissioning
Operator training and process optimization
Routine maintenance and troubleshooting
Spare Parts and consumables

Packing and Shipping:

The Press Filter will be carefully packed in a cardboard box to ensure safe transportation. The box will be labeled with the product name, model number, and other necessary information.

Shipping:

The Press Filter will be shipped via standard ground shipping. Shipping costs will vary depending on the destination and weight of the package. Customers will receive a tracking number via email once the package has been shipped.

FAQ:

Q: What is the brand name of the press filter?

A: The brand name of the press filter is UNIVEE.

Q: What is the capacity of the press filter?

A: The capacity of the press filter varies based on the model and design. Please refer to the product specifications for more information.

Q: What is the warranty period for the press filter?

A: The warranty period for the press filter is 1 year under the normal operation followed by our instructiona manual
