Square Type Hydraulic Press Filter Mild Steel 3m2 Plate And Frame Filtration
Square Type Hydraulic Press Filter Mild Steel 3m2 Plate And Frame Filtration
Square Type Hydraulic Press Filter Mild Steel 3m2 Plate And Frame Filtration
Square Type Hydraulic Press Filter Mild Steel 3m2 Plate And Frame Filtration
Specifications
Brand Name :
UNIVEE
Model Number :
U-PF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Capacity :
3 m2
Spout Type :
Narrow
Material :
Stainless Steel
Washing Efficient :
Clean
Service :
Available
Filter Shape :
Square
Operation :
Stable
Condition :
New
Description

Square Type Hydraulic Press Filter Mild Steel Frame 3m2 Filtration Area

Product Description:

One of the key attributes of our Press Filter is intelligent and easy control. Use domestic top brand or client point brand to ensure system operaton stable and reach equipment use requirements. Cooperate with well-know manufacturer of auxilary equipment to ensure the whole sytem quality.

Square Type Hydraulic Press Filter Mild Steel 3m2 Plate And Frame Filtration

Working Principle:

Filtering When the plates group closed, pump the slurry to filter, use distributed hose to feeding slurry to each slurry chamber, and filtrate pass through the cloth to filtrate frame and discharae out, the solid formed a cake on cloth surface.
Extrusion

High pressure water fed into upper chamber of rubber diaphragm, make the diaphragm

expand and extruding the cake and the liquid will be extruding out from cake.
Cake washing

Washing water feeding into slurry chamber throuah distributed hose cover on the cake

completely,under the pressure, the washing water pass throuah the cake and cloth to discharge out.
Air drying Compressed air through distributed hose feeding into slurry chamber and pressing rubber diaphragm, make the high-pressure water in the rubber diaphragm to discharge out, and the compressed air pass through cake and take liguid out to decrease the cake moisture to the lowest level.
Cake discharging

When finished the air-drying process, open the plates group, drive system makes

the cloth running and the cake discharge out on the two sides of filter at the same time.

Technical Parameters:

Filter area (m2) 1 2 3
Plate size (mm) 0.5m*/ layer
Plate Qty. (layer) 2 4 6
Length (m) 2.5
Width (m) 1.5
Height (m) 2.0 2.2 2.5
Weight (T) 8 9 10
Hydraulic station power (KW) 7.5
Extrusion pump head (m) 167
Extrusion pump flowrate (m/h) 8
Extrusion pump power (KW) 7.5

Applications:

Material

Feeding Density

(g/l)

 Exirusion Water Pressure (MPa) Cake Thickness (mm) Cake Moisture (% ) Capacity kg/m'.h
4A-zeolite 150-295 1.4 35 19~22 190~200
Sulfuret ~50 1.2 30 30 120
Lead ~50 1.2 30 15~20 35
Copper slag 600 1.6 40 8~9 310
Waste water sulphate 80 1.6 45 28~35 120~175
Calcination gold tailings 300 1.6 35 14~18 300~340
Superine aluminum.nydroxide 15~20% 1.6 20 C 29.5~32 65
Cu-Ni concentration 66.7 1.6 30 9.78 257
Copper concentration 45~50 1.6 35 7.6 360
Ni concentration 45-50 1.6 30 8 300~400
Tantalum-niobium smelt 　 1.6 　 20~25 200
Coal slime 30~35% 1.6 30 16~17 300
Slag iron 40% 1.6 28 <9 280
Goldlailings atterlolalion 20~30% 1.6 35 12-18 300
Mannitol 　 1.5 　 12 35
Zinc oxide powder 57% 1.6 18 20 90

Leachingresidve

olzino okide

 50% 1.6 10 18~20 70
Sulphur concentrate 10% 1.6 20 25-35 200

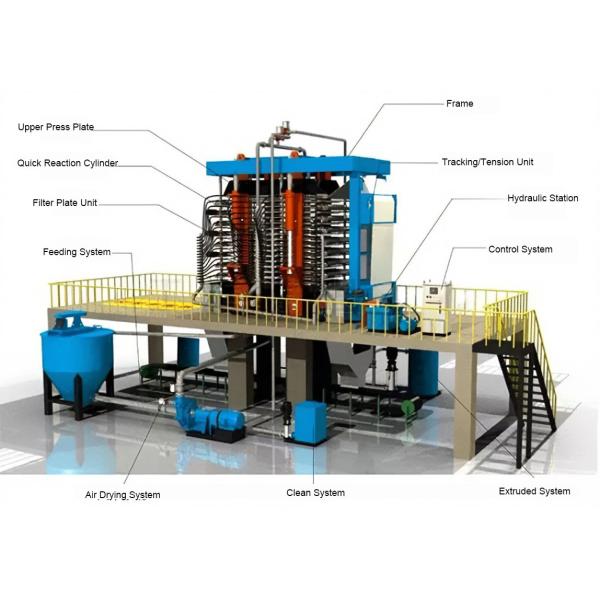

Strucure of Filter:

Square Type Hydraulic Press Filter Mild Steel 3m2 Plate And Frame Filtration

FAQ:

Q: What is the brand name of this press filter?

A: UNIVEE

Q: Where is this press filter made?

A: China

Q: Is this press filter easy to clean?

A: Yes, it is designed to be easy to disassemble and clean. Please refer to the user manual for instructions.
