Anti Corrosive Hydrocyclone Centrifuge Wastewater Treatment Rubber Lining
Anti Corrosive Hydrocyclone Centrifuge Wastewater Treatment Rubber Lining
Anti Corrosive Hydrocyclone Centrifuge Wastewater Treatment Rubber Lining
Anti Corrosive Hydrocyclone Centrifuge Wastewater Treatment Rubber Lining
Specifications
Brand Name :
UNIVEE
Model Number :
U-H
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Durability :
High Durability
Capacity :
300m3/h
Installation :
Easy Installation
Connection :
Flange
Application :
Water Treatment
Condition :
New
Maintenance :
Low Maintenance
Operating Principle :
Centrifugal Force
Description

Rubber Lining Anti Corrosive Hydrocyclone Centrifugal Water Treatment Technology

Product Description:

Hydrocyclone is a kind of clarify equipment adopting centrifugal force to speed up settling of particles. The hydrocyclone needs pressure feeding, so more power cost, but small footprint, low cost, big processing capacity, hi-efficient clarify. More fine overflow product obtained. It is mainly for classification of second stage mine grinding closed cycle.

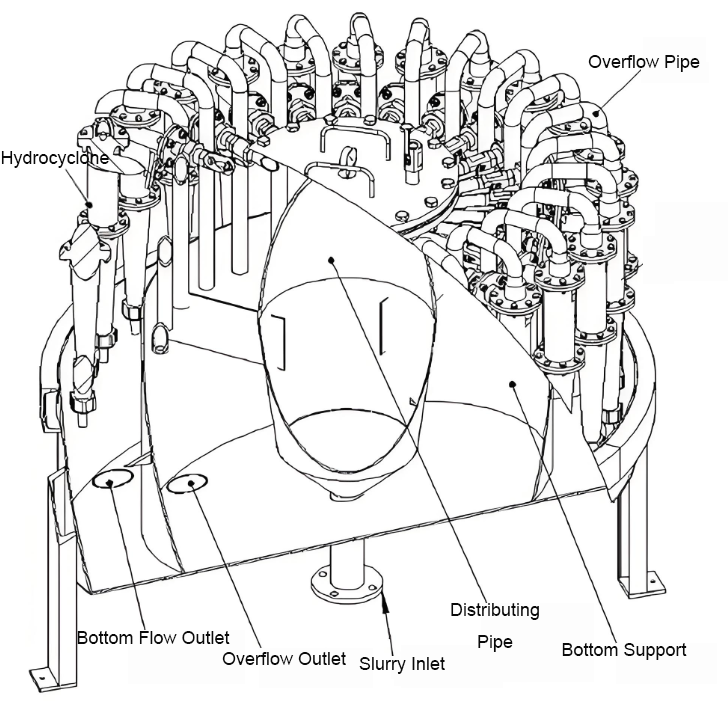

Hydrocyclone tank is consisted with a upper hollow cylinder and a lower inverted cone, besides this, a feeding pipe, overflow pipe and sand setting outlet.
Anti Corrosive Hydrocyclone Centrifuge Wastewater Treatment Rubber Lining

Features:

  • No drive unit, the structure of hydrocyclone is simple structure, low cost, particle size is fine after classifying, hi-efficient classifying, up to 80~90%.

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
750 240.260.280 120.140.160 20 0.03-0.4 400-500 74-250
660 180.200.220.240 80.110.150 20 0.03-0.4 250-360 74-220
610 160.180.200.220 90.100.110 20 0.03-0.4 250-360 74-200
500 130.140.160.220

35.45.50.65.70.

80.90.100

 10.20.25 0.03-0.4 140-220 74-200

Packing and Shipping:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
Packed with fumigation package
Packed in plastic lorap, double bister and jute rope

FAQ:

Q: What is the brand name of this hydrocyclone water treatment product?
A: The brand name of this product is UNIVEE.

Q: What is the model number for this product?
A: The model number for this product is U-H.

Q: Where is this hydrocyclone water treatment product made?
A: This product is made in China.

Q: What type of water treatment applications is this product suitable for?
A: This hydrocyclone water treatment product is suitable for a wide range of applications, including but not limited to: oil and gas, mining, industrial, municipal, and agricultural water treatment.
