Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function
Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function
Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function
Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function
Specifications
Brand Name :
UNIVEE
Model Number :
U-HS
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Material :
Mild Steel Painting
Pressure :
0.03-0.4MPa
Type :
Water Treatment Device
Speed :
15m3/h
Service :
Available
Condition :
New
Operation cost :
Low
Description

Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function

Product Description:

Hydrocyclones are commonly used for desliming, dewatering and sizing -4mesh (5mm) particles. They can be used in industries such as sand, aggregates, coal, industrial minerals, hard rock mining and more. The use of Hydrocyclones in washing and stockpiling is common in the construction aggregate industry.

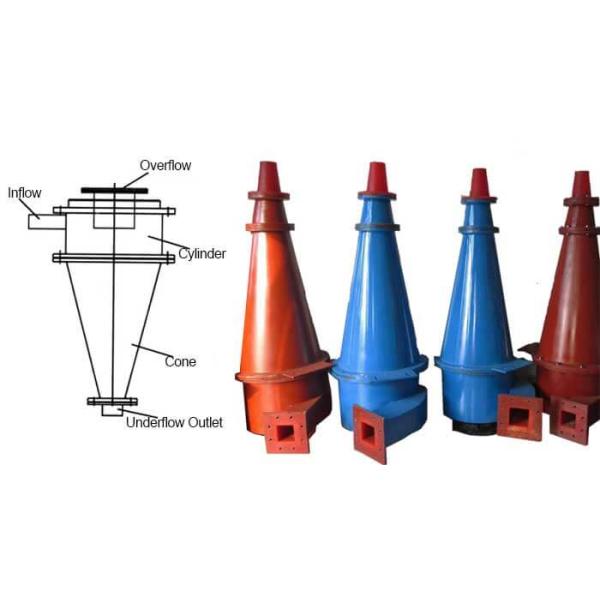

The hydrocyclone is a simple piece of equipment that uses fluid pressure to generate centrifugal force and a flow pattern which can separate particles or droplets from a liquid medium. These particles or droplets must have a sufficiently different density relative to the medium in order to achieve separation.

Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function

Features:

  • The hydrocyclone has ability of wear-resistant, anti-corrosion, simple structure, low cost, particle size is fine after classifying, hi-efficient classifying, up to 80~90%.

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
750 240.260.280 120.140.160 20 0.03-0.4 400-500 74-250
660 180.200.220.240 80.110.150 20 0.03-0.4 250-360. 74-220
610 160.180.200.220 90.100.110 20 0.03-0.4 250-360 74-200
500 130.140.160.220

35.45.50.65.70.

80.90.100

 10.20.25 0.03-0.4 140-220

74-200,

74-150

Applications:

Hydrocyclones are used for desliming, dewatering and sizing a variety of products, including sand, construction aggregates and industrial minerals. Containing no moving parts, these machines are relatively straightforward. Here are five things you need to know about Hydrocylcones.

Slurry Treatment Cone Type Hydrocyclone Separator Gravity Function

Packing and Shipping:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
Packed with fumigation package
Packed in plastic lorap, double bister and jute rope

FAQ:

Q1: How to process an order for hydrocyclone separator?

A: The product is customized, first of all, please provide your requirement details, our engineers will provide the prelimianry plan for your reference.

Q2: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q3. Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.
